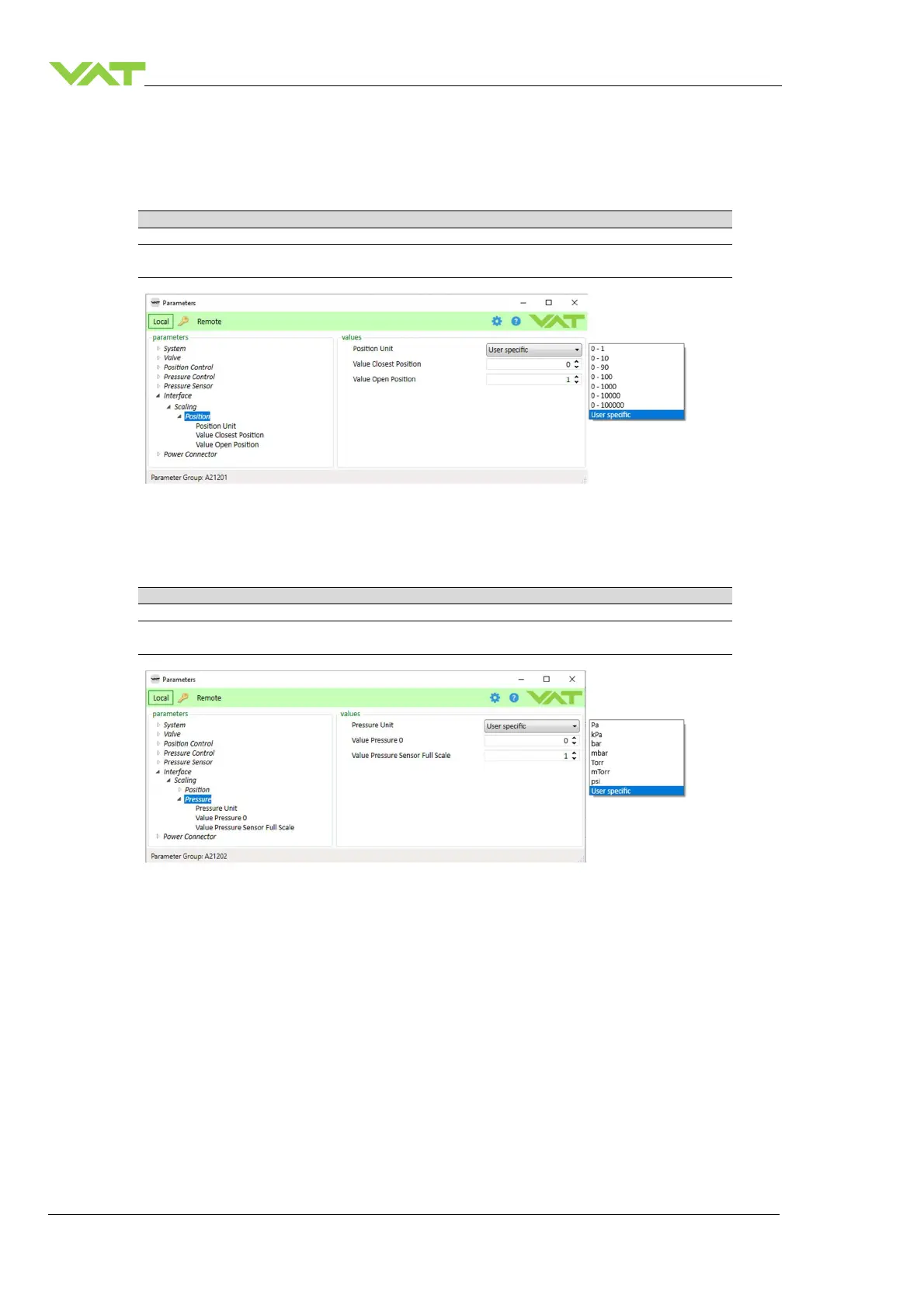

5.12.5 Position and Pressure Units
5.12.5.1 Position
Defined range is used in all commands with position values.
Location: CPA/Navigation/Parameters: Interface.Scaling.Position
Parameter Description
Position Unit
1,10,90, 100,1000,10000, user specific
Value
Closest Position
Range if the setting of Position Unit is user specific
Value Open Position
5.12.5.2 Pressure
Defined unit/range is used in all commands with pressure values.
Location: CPA/Navigation/Parameters: Interface.Scaling.Pressure
Parameter Description
Pressure Unit
Pa, kPa, bar, mbar, Torr, mTorr, psi, user specific
Value Pressure 0
Range if the setting of Pressure Unit is user specific
Value Pressure Sensor Full Scale
