Distance Measurements PLRF10C/15C-2.0en
17
Complete measurement with data transfer
(slope distance, azimuth, inclination)

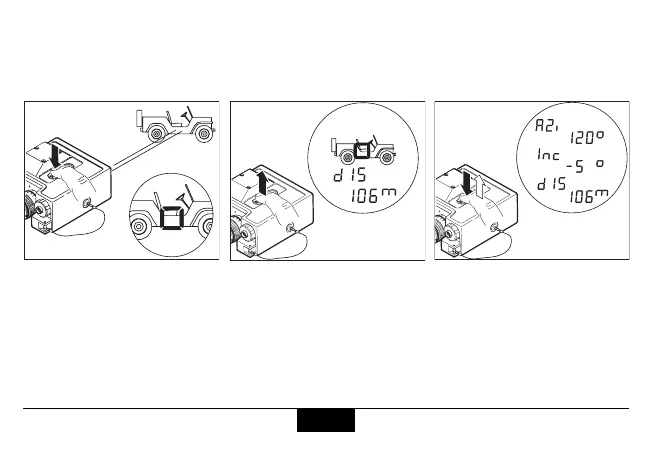

Press and hold the distance
key.
Sight the object with the aiming
mark
Hold the instrument steady as
you release the key.
"dIS" appears briefly followed
by the slope distance.
"- - - -" is displayed when no
distance could be detected.
While the display is on, press
and hold the distance key to get
the azimuth "AZi". Do the same
again to get the inclination "Inc".
Repeat above step to obtain the
distance "dIS" again.
L
The measurement data is transmitted to the serial interface after a measurement is taken.
