Compass compensation PLRF10C/15C-2.0en
34

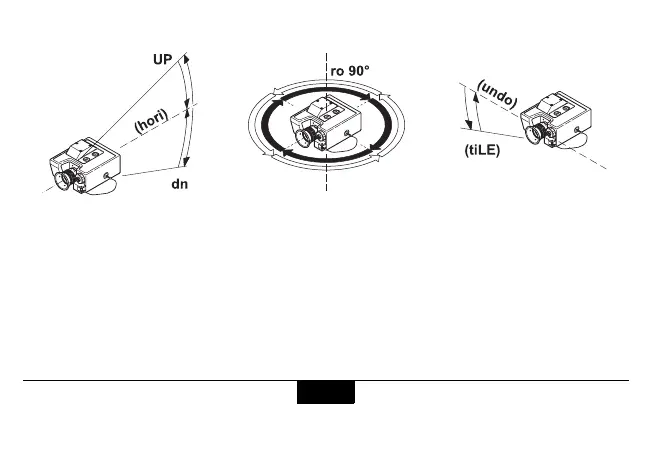

Compensation instructions
The device needs to be
swivelled in various directions
during compensation. Instruc-
tions for the movements appear
successively in the display:
hori: return to horizontal
tiLE:Tilt the left side of the
device downwards
undo: undo tilt, return to
horizontal
tFAr: too far, reverse direction
Always turn in the same
direction for all "ro90°"
instructions.
Important:
When the "StOP" instruction is
displayed, immediately hold the
device still and wait for the next
instruction. Perform each
movement slowly and steadily,
until the next instruction is
displayed.
StOP:
UP:
dn:
ro90°:
hold still
turn up
turn down
rotate by 90°
+30°
-30°
2
0
-30°
