Compass compensation PLRF10C/15C-2.0en
35

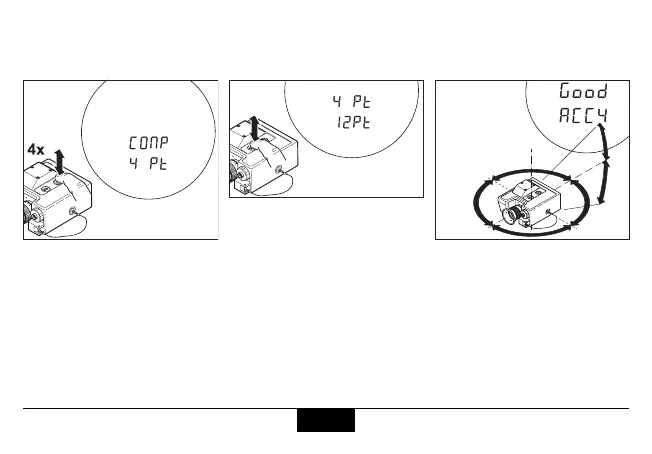

Perform compass compensation
Point the device roughly
northwards.
Click the azimuth key four times
in rapid succession.
"COMP" appears briefly
followed by "4 Pt", standing for
the 4 point compensation
procedure.
L
If you want to perform
the 12 point
compensation, click the
distance key until "12Pt"
is displayed.
The selected procedure starts
automatically after a few
moments. Move the device
according to the displayed
instructions (see page 34).
After the last instruction,
analysis begins and the
electronic reticle blinks for a few
seconds.
The result and accuracy of the
compensation appears
(see page 36).
