Azimuth and inclination measurements PLRF10C/15C-2.0en
22

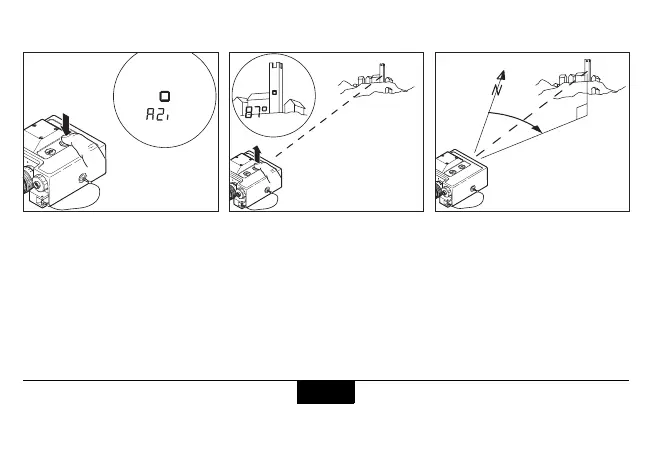

Azimuth measurement
Press and hold the azimuth key.
"AZi" appears for a short
instance followed by the current
azimuth.
The display updates
continuously.
Sight the object with the aiming
mark, then release the azimuth
key while holding the device
steady.
The most recently measured
azimuth is displayed.
87°
