Equipment
PLRF10C/15C-2.0en
45

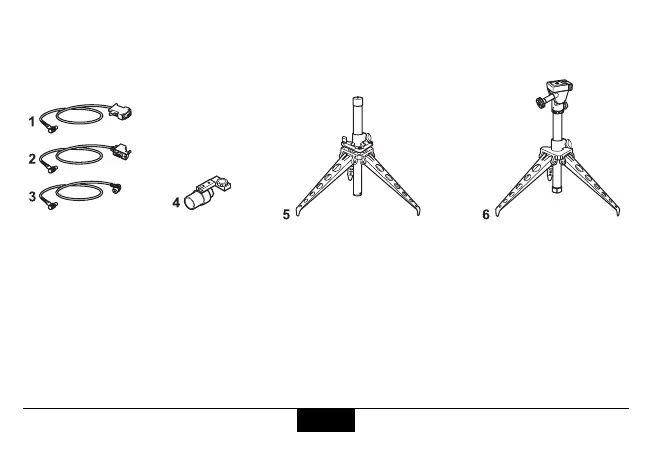

Accessories
Optional:
1
706 271
SEV48 data cabl
e to PC
2
721 951
SEV63 data cabl
e to PLGR
3
902 984
SEV83 data cabl
e to GARMIN 12/
12XL
4
Night vision adapte
r PLRF (upon request)
5
664 868
SST3-1 mini-tripod,
non magnetic
6
729 452
SST3-2 mini-tripod,
non magnetic with
pan/tilt head
44
46
Table of Contents
Table of Contents
3
General Information
6
Safety Notices
6
Care and Cleaning
8
Technical Data
9
Getting Started
12
Changing the Batteries
12
Diopter Adjustment
13
Reticle
14
General Operations
15
Distance Measurements
16
Factors Affecting Measurement Range
16
Complete Measurement with Data Transfer (Slope Distance, Azimuth, Inclination)
17
Multiple Object Measurement
18
Distance between Two Objects
19
Horizontal and Vertical Distance from Own Position to an Object
20
Azimuth and Inclination Measurements
21
Factors Influencing Azimuth Accuracy
21
Azimuth Measurement
22
Inclination Measurement
23
Configuration
24
Making Adjustments
24
Measuring 3 Distances
25
Electronic Reticle
25
Night Vision Device
25
Night Vision Operation - Mount
26
Night Vision Operation - Remove
27
Settings
28
Measurement Units
28
Distance Gate
29
Declination
30
Compensation
30
Declination Display
30
Declination Setting / Correction
31
Set Factory Settings - Reset to Default
32
Compass Compensation
33
General Instructions
33
Compensation Instructions
34
Perform Compass Compensation
35
Results
36
Built-In-Test
37
Troubleshooting
38
Data Transfer
42
Connecting the Interface Cable
42
Data Transfer Format to PC,PLGR and GARMIN
43
Equipment
44
Parts List
44
Accessories
45
Options
46
Interface Settings
46
PLGR+96 / PLGR II Settings
48
GARMIN Settings
49
Fall of Shot - FOS
50
Customer Service
52
Quality System
53
