Introduction Permissible Console Input/Output Connections
6
TLS-350/PROMAX/EMC CONSOLES

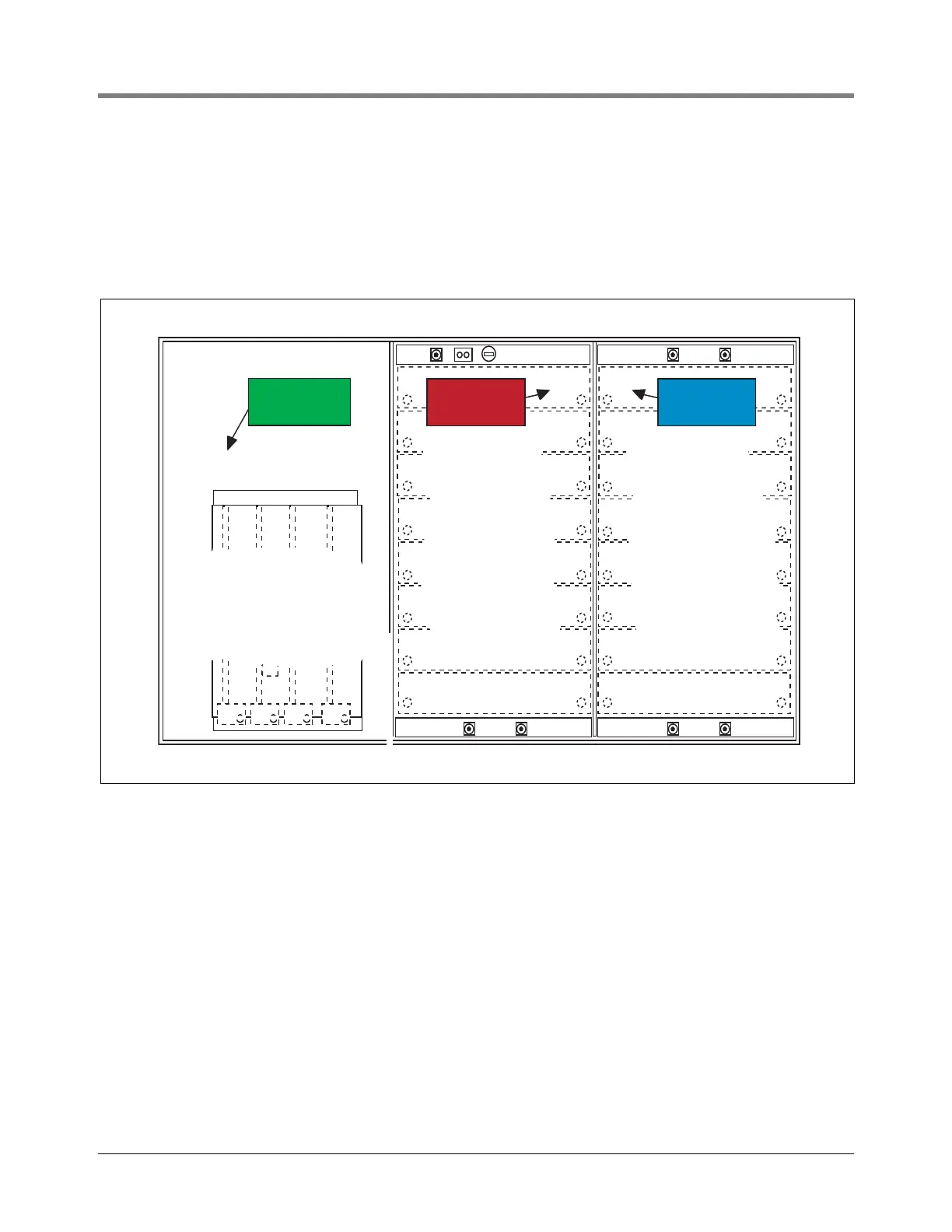

Figure 2 illustrates the console’s plug in module locations and the maximum number allowed in each of the three
module sections of the console: Communications Bay, Power Bay, and Intrinsically Safe Bay. Input/output cables
to the console’s Comm modules attach to connectors on each module’s end plate, and are accessible through an
opening in the base of the console. Note that the number/type of modules in your console may differ from those in
the figure below.
Figure 2. TLS-350 Series/ProMax/EMC Consoles - Plug-in Module Compartments
console\350rjmods.eps
Intrinsically
Safe Bay
Permissible
Modules
(Limit 8
per console)
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
12 34
I.S. Bay
Slot Numbers
Power Bay
Slot Numbers
Comm Bay
Slot Numbers
Comm Cage*
