Veeder-Root Gilbarco EMC Series User Manual

Mag Probe Installation Entering Custom Float Size (In-Tank Setup - Ver. 22 or later)
37

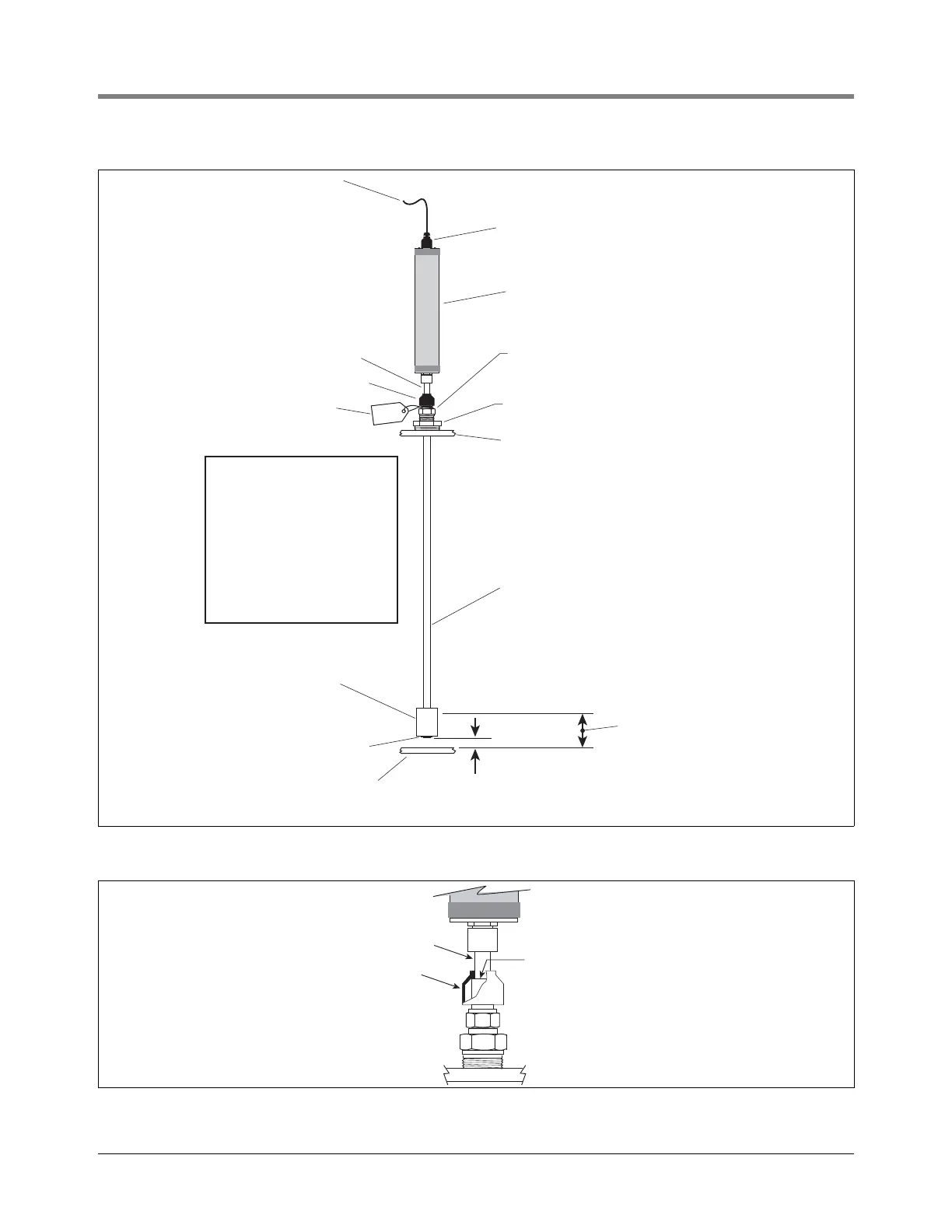

Figure 28. Media Isolated Mag Plus Probe Installation Example
Figure 29. Rain Shield Installed Position.
Mag probe float
(outside tube)
Float retaining ring
(end of tube)
3.25" Approximate lowest
product level measured
by probe
1" clearance to
allow for expansion
probes/tubelpginst.eps
Bushing, Stainless Steel
1" NPT x 1.5" NPT or 1" NPT x 2" NPT
Male connector 7/8" tube to 1" NPTF
Mag probe shaft*
(inside tube)
Rain shield
Warning tag
Tank
7/8" OD stainless steel tube
with welded stainless plug
(Mag probe shaft lowered into tube)
Mag probe canister
Tank
bottom
Probe cable
Connector
*NOTE: to ensure that
the probe/tube kit can
be installed, the Mag
probe length and the
LPG-ISO probe kit
length should be at least
6 inches longer than the
tank's inside diameter.
Rain shield
(Cutaway)
Probe shaft
Top of tub
e
probe\lpgrnshield.eps
