Mag Probe Installation Installing a Chem-ISO Mag Probe
31
CAUTION: If Ball Float Check Valve was part of your Overfill Protection System, you now need to consider another
form of overfill protection (i.e. a console alarm, a drop tube with overfill protection valve, or some other accepted
means).

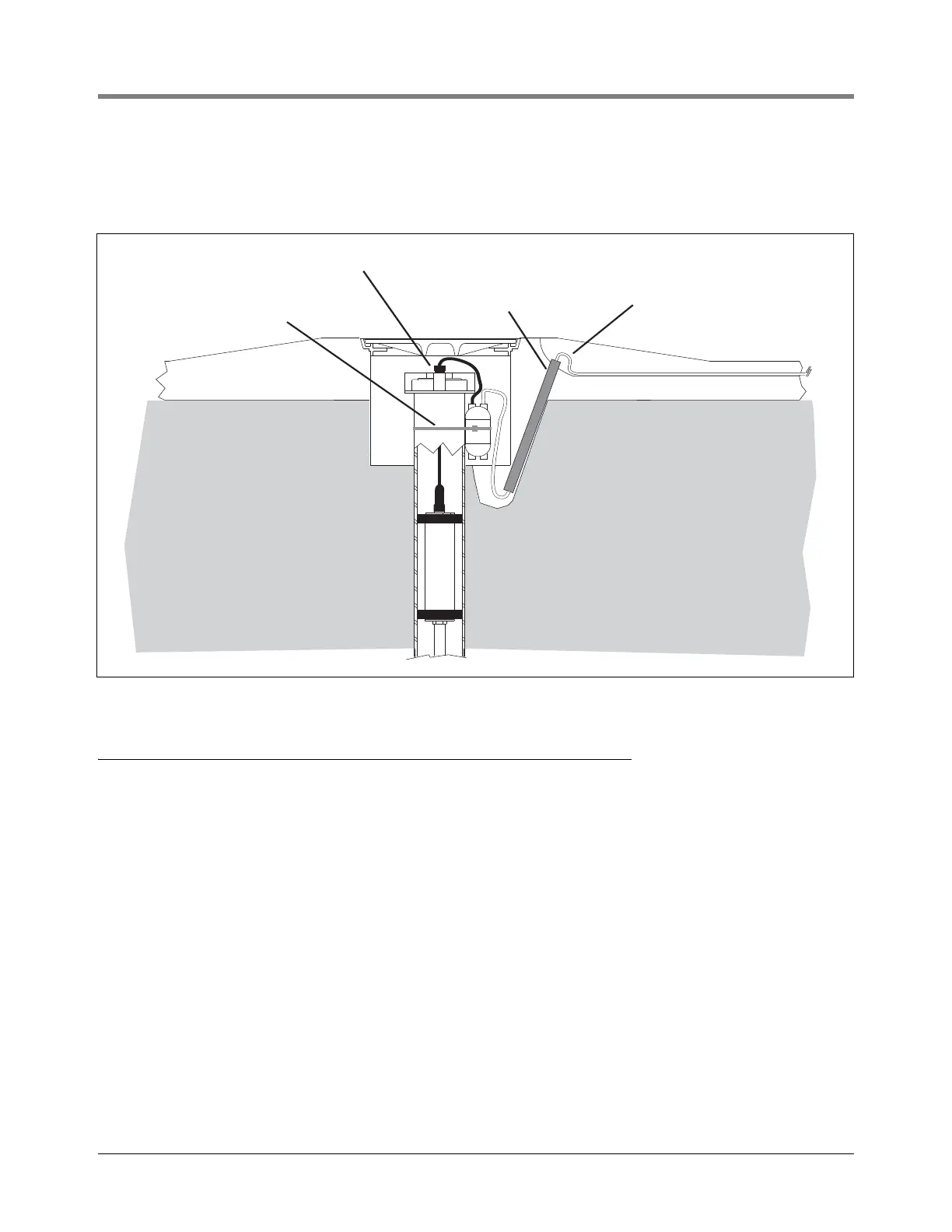

Figure 25. Mag Probe Vapor Extractor Riser Installation - w/o Coupling Adaptor
Installing a Chem-ISO Mag Probe
BEFORE YOU BEGIN
Before you begin installation, read the following guidelines:
• It is essential that you carefully read and follow the warnings and instructions in this manual to protect yourself
and others from serious injury, explosion, or electrical shock.
• For safety reasons, we have taken particular care in the design of this product to limit the power in the wiring to
the product tanks and to keep that wiring physically separated from any other wiring. It is your responsibility to
maintain the effectiveness of these safety features by installing this product in accordance with the instructions
and warnings which follow. Your failure to do so could create danger to life and property.
• Failure to install this probe kit in accordance with its instructions and warnings will result in voiding of all
warranties connected with this product. This unit does not contain any user controls. Opening or tampering with
a magnetostrictive probe will result in voiding the warranty.
Note: Remove any sludge from the bottom of the tank. Sludge can interfere with the proper operation of the float.
probes\verwove.eps
Tie wrap securing splice
enclosure to riser
Riser cap with cord grip
Flex Conduit
Direct Burial
Cable
