Connecting Probe/Sensor Wiring to Consoles TLS-350/ProMax/EMC Consoles
60
PROBE/THERMISTOR INTERFACE MODULE - I.S. BAY

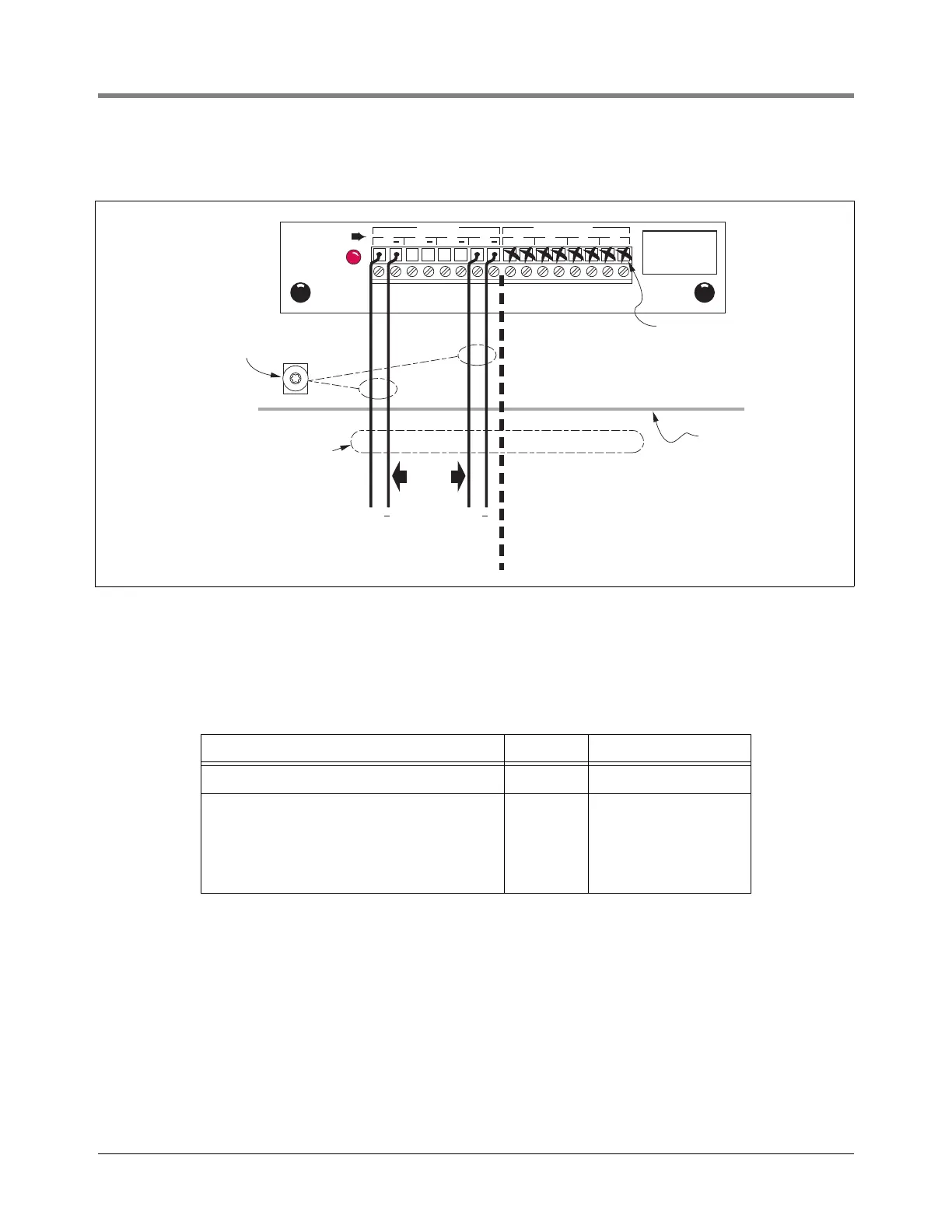

Figure 58. Probe/Thermistor Interface Module Wiring
Connecting Devices
Connect Mag Probes and Thermistor in the table below to the appropriate terminals on the Probe/Thermistor
Interface module as shown in Figure 58.
Device Wires Observe Polarity
Mag Probe 2 Yes
Ground temperature thermistor - When using
volumetric line leak detection (VLLD), only
one ground temperature thermistor is needed
per site and the thermistor must be wired to
thermistor position number 1 (positions 2 - 4
are not used).
2No
PROBE /
THERMISTOR
MAXIMUM PROBE
OUTPUT RATINGS:
13 VDC
0.2 AMP
PROBE / THERMISTOR INTERFACE MODULE
1234 1234
PROBE THERMISTOR
consoles\ptimw.eps
Console
+
Probe
#1
+
Probe
#4
Up to 4
Probes
+ + + +
Not Used
Attach Cable Shields to Ground
Lug Closest to Conduit Entry
Rigid Conduit
(enters Console
through an I.S. Bay
knockout)
