Connecting Probe/Sensor Wiring to Consoles TLS-350/ProMax/EMC Consoles
66
VAPOR SENSOR INTERFACE MODULE - I.S. BAY

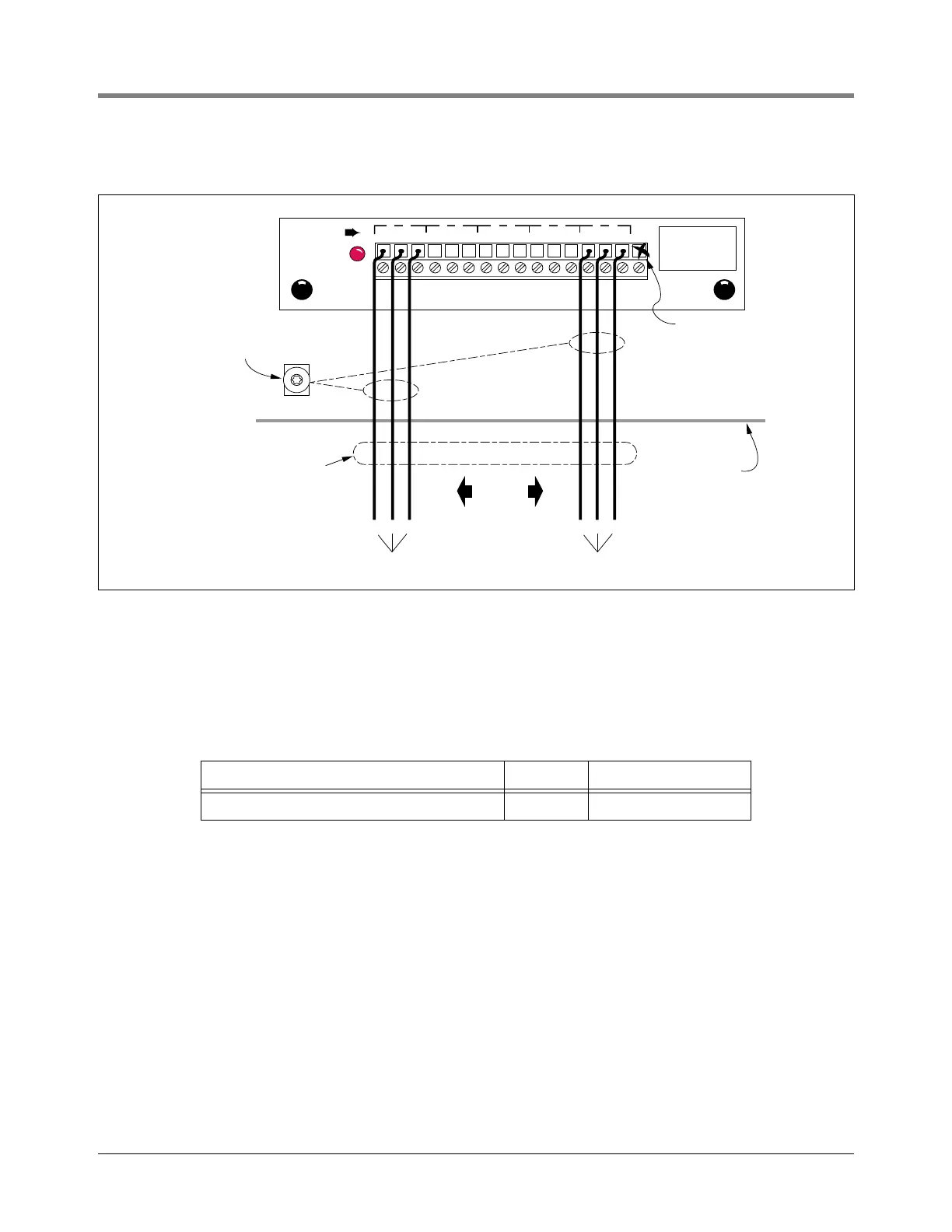

Figure 64. Vapor Sensor Interface Module Wiring
Connecting Device
Connect sensor in the table below to the appropriate terminals on the Vapor Sensor Interface module as shown in
Figure 64.
Device Wires Observe Polarity
Vapor Sensor 3 Yes
VAPOR
SENSOR
MAXIMUM SENSOR
OUTPUT RATINGS:
15 VDC
.15 AMP
VGWVGWVGWVGWVGW
VAPOR SENSOR INTERFACE MODULE
consoles\vsimw.eps
Console
V
W
G
Up to 5
Sensors
Sensor
#1
Sensor
#5
11 22 33 44 55
Not Used
Attach Cable Shields to Ground
Lug Closest to Conduit Entry
V
W
G
Rigid Conduit
(enters Console
through an I.S. Bay
knockout)
