Planning Probe and Sensor Installations Permissible Console Input/Output Connections
8

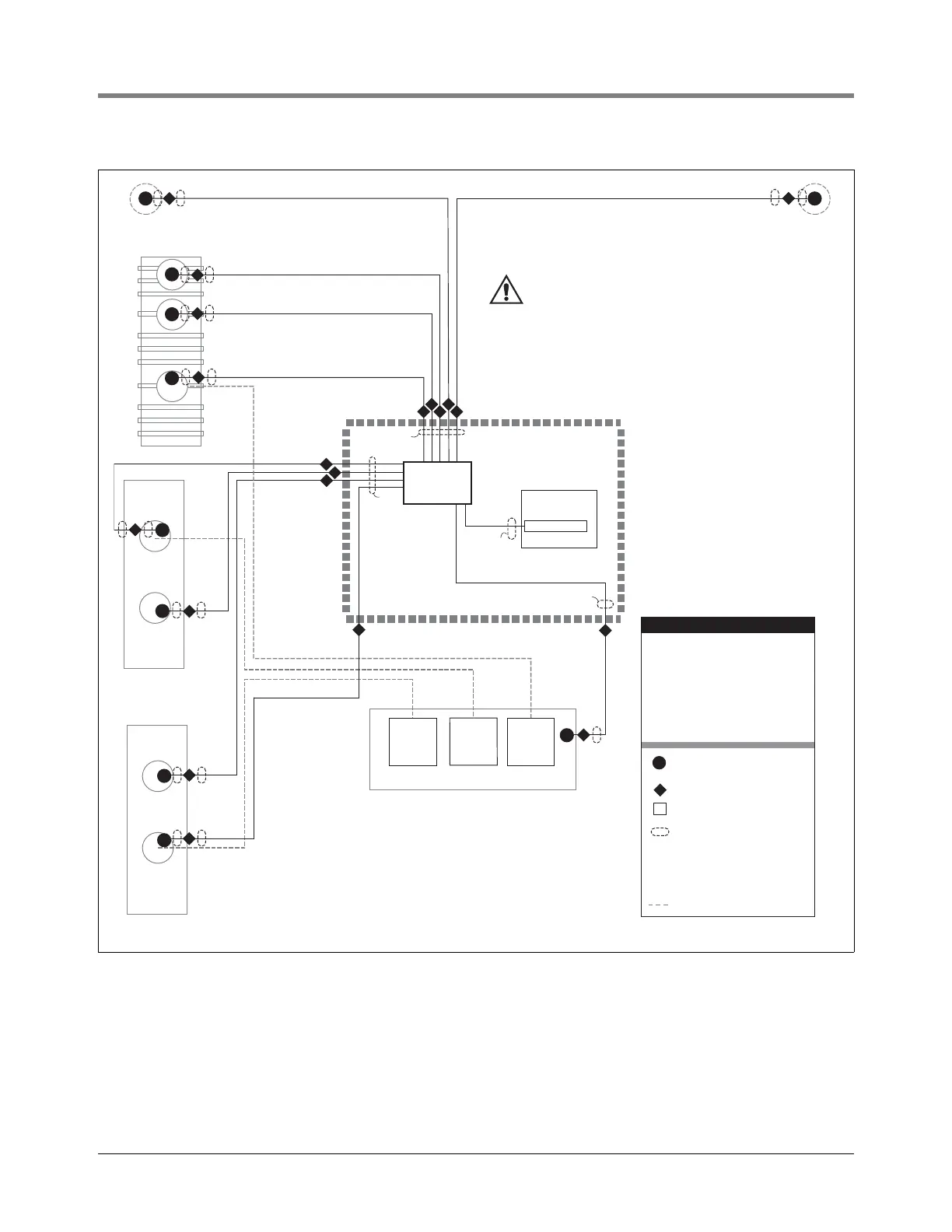

Figure 3. TLS-300/ProPlus/EMC Basic Typical Site/Forecourt Layout
MP
MP
IS
DS
DS
Non-Hazardous
Area
CIRCUIT
BREAKER
PANEL
120 OR 240 VAC
DS
DP
GW
Discriminating Sump Sensor
Dispenser Pan Sensor
Groundwater Sensor
IS
Interstitial Liquid Sensor
V
Vapor Sensor
MP
Magnetostrictive Probe
consoles\30sysdia.eps
Hazardous
Area
DISPENSERS
Hazardous Area
Expoxy Sealed Connection in
a Weatherproof Junction Box
Seal-Off
LEGEND
1/2'' Rigid Conduit
Terminal Connection
IS
IS
PA
IS
Conduit Enters Console in an
Intrinsically Safe Area Knockout
Conduit Enters Console in a
Power Area Knockout
IS
PA
TLS-300/
ProPlus/
EMC Basic
Product piping
Double Wall Tank
Single Wall Tank
Single Wall Tank
MP
DS
DP
GW
V
Intrinsically safe wiring shall be installed in accordance
with Article 504-20 of the latest National Electrical Code
(NFPA 70).
WARNING:
Substitution of components may impair intrinsic safety.
Circuitry within the Console barrier forms an intrinsically
safe, energy-limited system. This system makes probes
and sensors safe for use in a Class I, Group D hazardous
location. Probe and sensor wiring is intrinsically safe
only when connected to Veeder-Root's Consoles,
reference Form Numbers 8485.
