Special Mag Probe Installation Kits Vapor Extraction Riser Kit w/ Coupling Adaptor
20
Vapor Extraction Riser Kit w/ Coupling Adaptor
This kit contains parts needed to install a Mag Probe into a Vapor Extractor Riser that has a Coupling Adapter
(parts listed in Table 3 and shown in Figure 13):

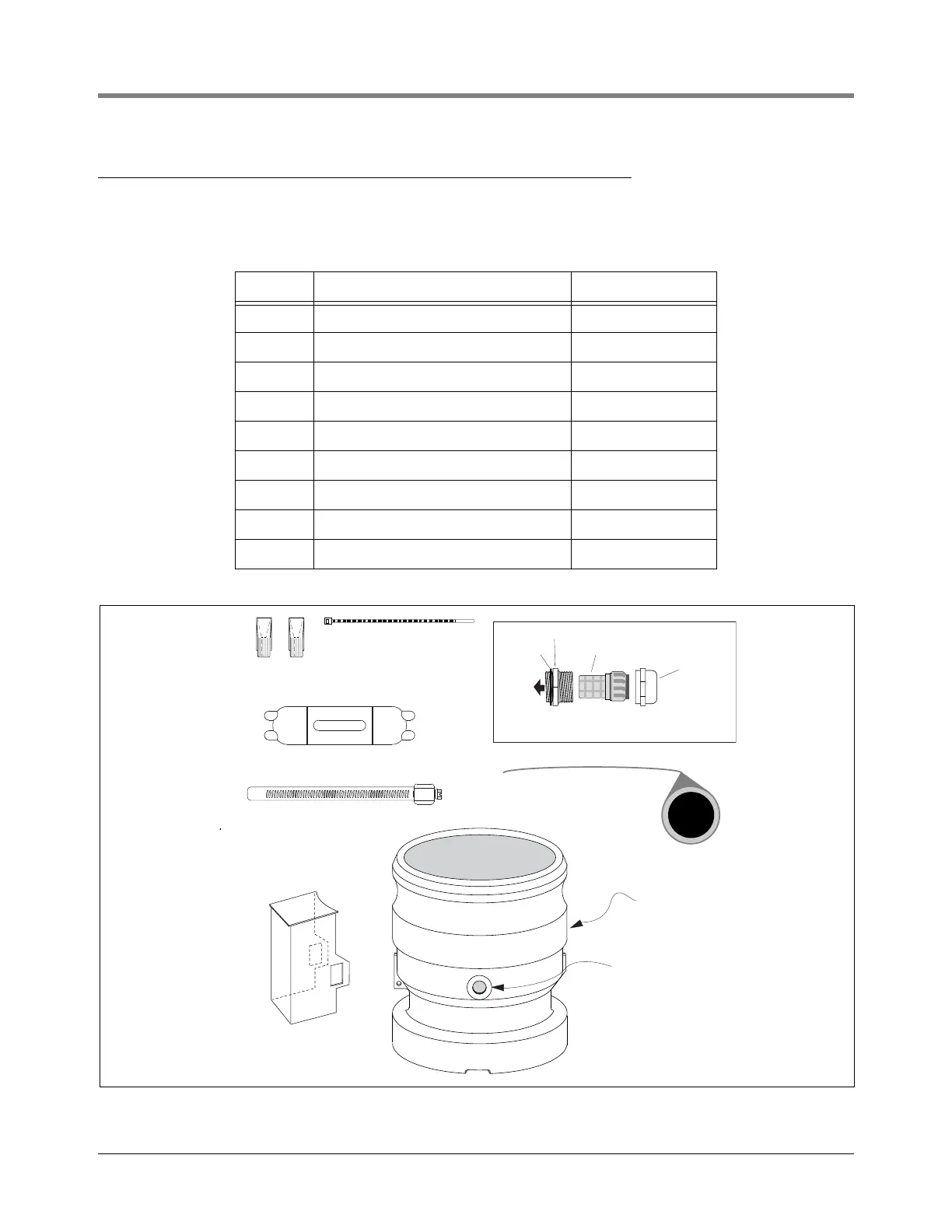

Figure 13. Mag Probe Vapor Extractor w/Coupling Adaptor Installation Kit
Table 3. Vapor Extraction Riser Kit (w/ coupling adaptor) - Part No. 846500-001
Quantity Description Part Number
2 Wire Nut 576008-461
1 Cable Tie 576008-482
1 Splice Enclosure 514100-357
1 Splice Kit Instructions Manual 576013-861
1 PG7 / 1/4” Cord Grip Fitting 576008-637
1 Modified OPW Adaptor 331448-001
1 Shield -Fitting 331449-001
1 4” Hose Clamp 576008-638
12 inches Flex Conduit 576008-294
probes\vapradpt.eps
1/4 NPT tapped hole
for cord grip fitting
Modified OPW
Adaptor
Fitting - PG7 / 1/4" NPT Cord Grip
Shield - Fitting
4" Hose Clamp
12 Inches Flexible Conduit
Splice Enclosure
Cable Tie
Wire Nuts
O-ring
Threaded Fitting
Nylon Splined Bushing
Dome Nut
This end
screws
into OPW
Adaptor
