Connecting Probe/Sensor Wiring to Consoles TLS-350/ProMax/EMC Consoles
62
INTERSTITIAL SENSOR INTERFACE MODULE - I.S. BAY

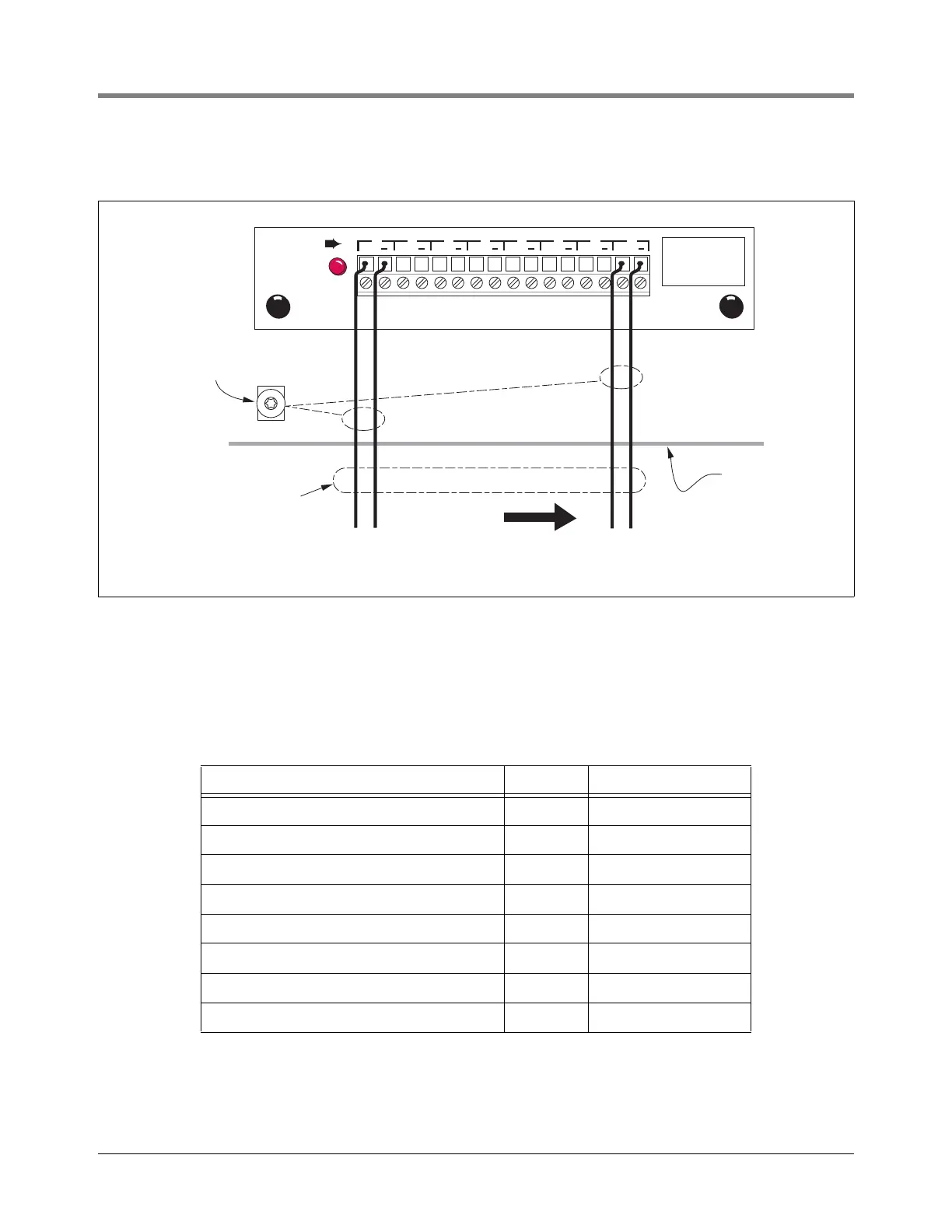

Figure 60. Interstitial Sensor Interface Module Wiring
Connecting Devices
Connect sensors in the table below to the appropriate terminals on the Interstitial Sensor Interface module as
shown in Figure 60.
Device Wires Observe Polarity
Interstitial sensors for fiberglass/steel tanks 2 No
Sump sensor 2 No
Position-Sensitive Sensor 2 No
Discriminating dispenser pan sensor 2 No
Discriminating containment sump sensor 2 No
Hydrostatic sensor (for all double-wall tanks) 2 No
Oil/water separator sensor 2 No
CSTP Liquid Switch 2 No
SENSOR
MAXIMUM SENSOR
OUTPUT RATINGS:
15 VDC
.15 AMP
+ + + + + + + +
1 2 3 4 5 6 7 8
INTERSTITIAL SENSOR INTERFACE MODULE
consoles\isimwir.eps
Sensor
#1
Sensor
#8
Up to 8 sensors
Console
A
ttach Cable Shields to Ground
Lug Closest to Conduit Entry
Rigid Conduit
(enters Console
through an I.S. Bay
knockout)
