Connecting Probe/Sensor Wiring to Consoles TLS-350/ProMax/EMC Consoles

TYPE A INTERFACE MODULE - I.S. BAY

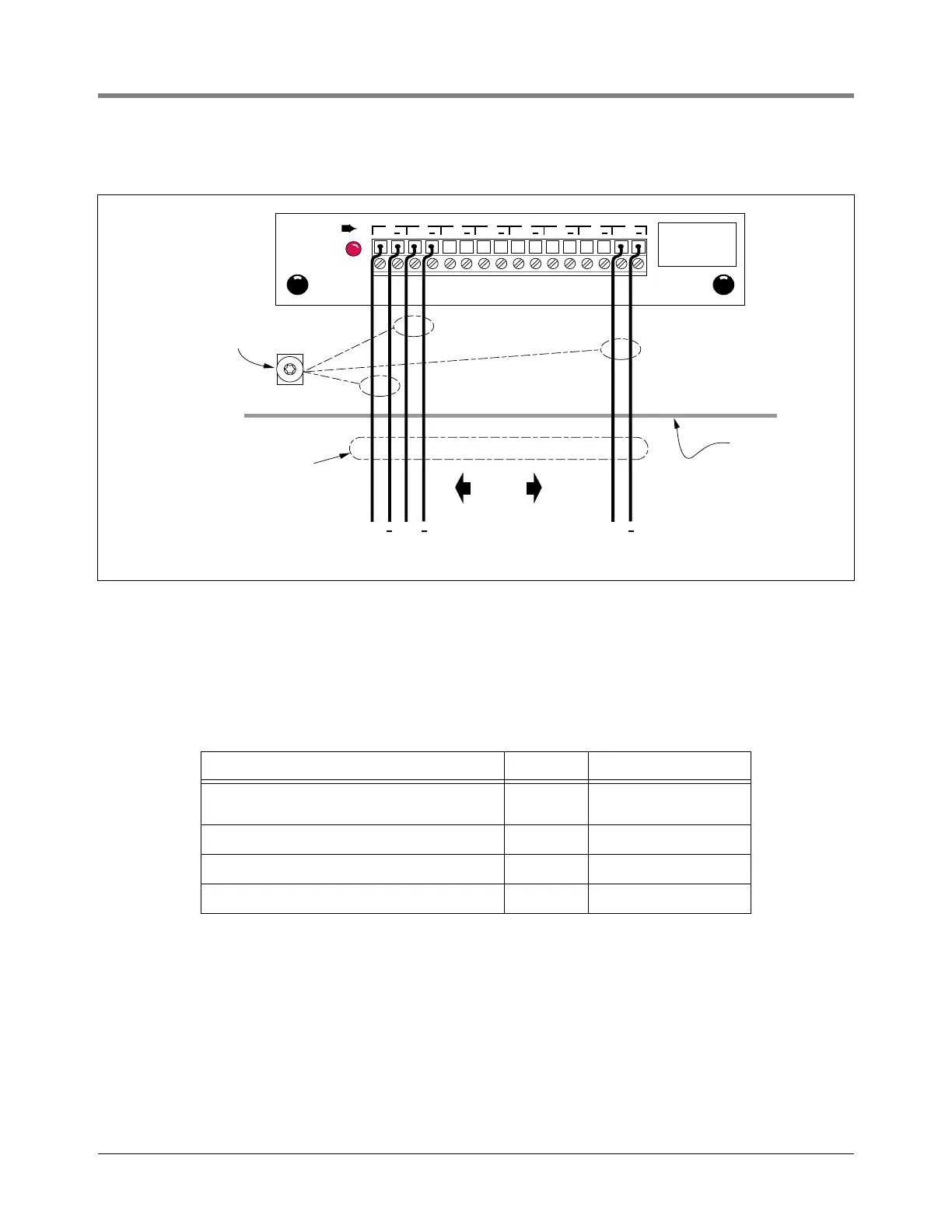

Figure 62. Type A Interface Module

Connecting Devices

Connect sensors in the table below to the appropriate terminals on the Type A Interface module as shown in

Figure 62.

Device Wires Observe Polarity

4SITE discriminating Interstitial sensor for

fiberglass tanks

2Yes

Micro sensor 2 Yes

Solid-state dispenser pan sensor 2 Yes

Solid-state containment sump sensor 2 Yes

SENSOR

MAXIMUM SENSOR

OUTPUT RATINGS:

13 VDC

.20 AMP

+ + + + + + + +

1 2 3 4 5 6 7 8

TYPE A INTERFACE MODULE

consoles\taimw.eps

Console

Up to 8

Sensors

Sensor

Attach Cable Shields to Ground

Lug Closest to Conduit Entry

++ +

Rigid Conduit

(enters Console

through an I.S. Bay

knockout)
