Console Installation Mounting the Console
11

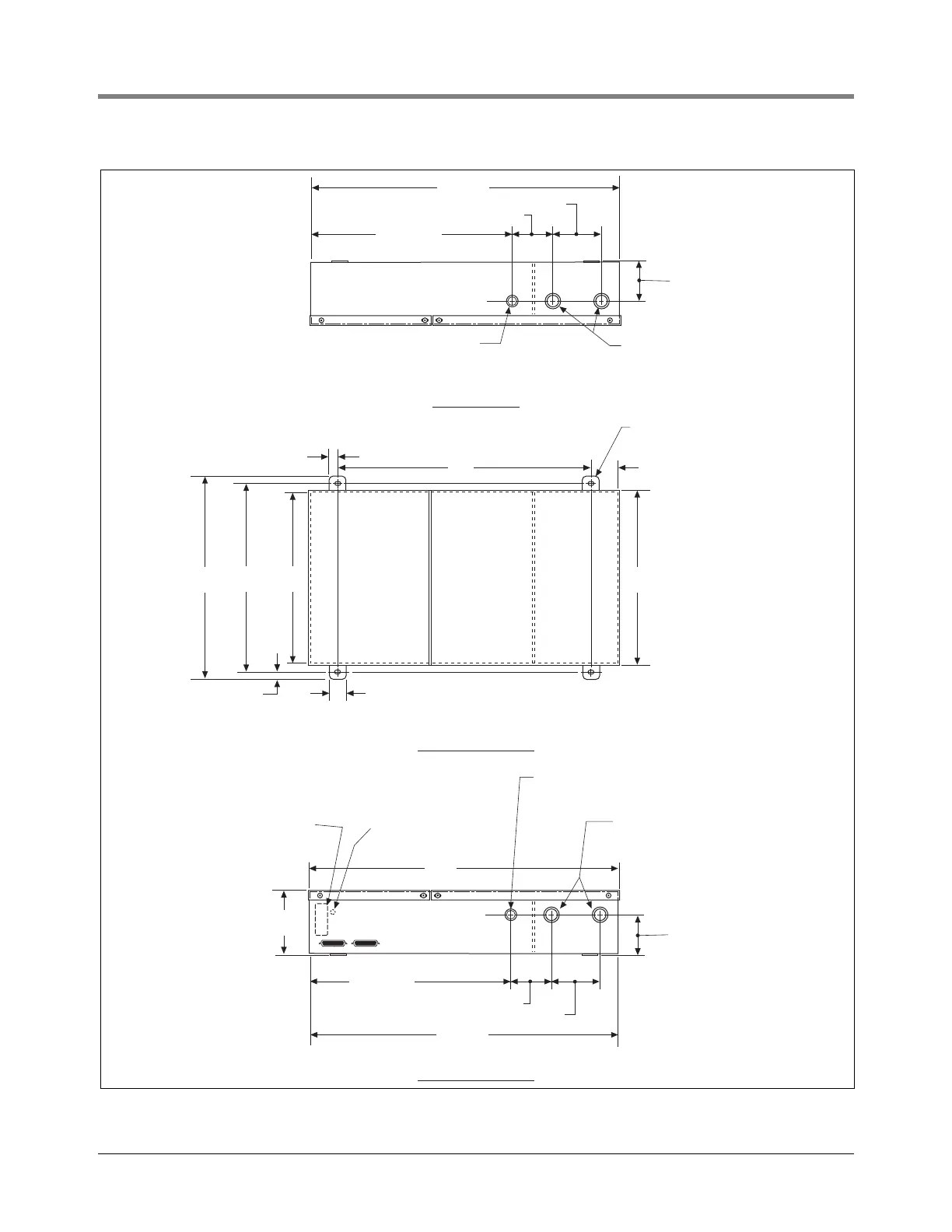

Figure 5. TLS-300/ProPlus/EMC Basic Console Dimensions and Designated Conduit Knockouts
FRONT VIEW
20''
4-1/8''
2-1/2''
2-1/16''
3-9/16''
13-1/16''
19-3/4''
BOTTOM VIEW
consoles\300cndim.eps
2-1/16''
3-9/16''
19-3/4''
13-1/16''
2-1/2''
16''
1-7/8''
11-1/4''11''13''
1/2'' TYP.
1'' TYP.
12''
1/2'' TYP.
Conduit Entries To Intrinsically
Safe Area (3/4, & 1'' I.P.S.
Knockouts Typ. - 4 Places)
Conduit Entry To Power Area
(1/2, & 3/4'' I.P.S Knockout Typ. - 2 Places)
7/8'' x 2-3/8'' knockout -
(Connector access for
optional Comm module)
knockout for
#4 x .312
Comm module
mounting screw
Conduit Entry
Conduit Entries To
Intrinsically Safe Area
Mounting Flanges W/
1/4'' x 3/8''
TOP VIEW
