Sensor Installation Sensor Installation Diagrams

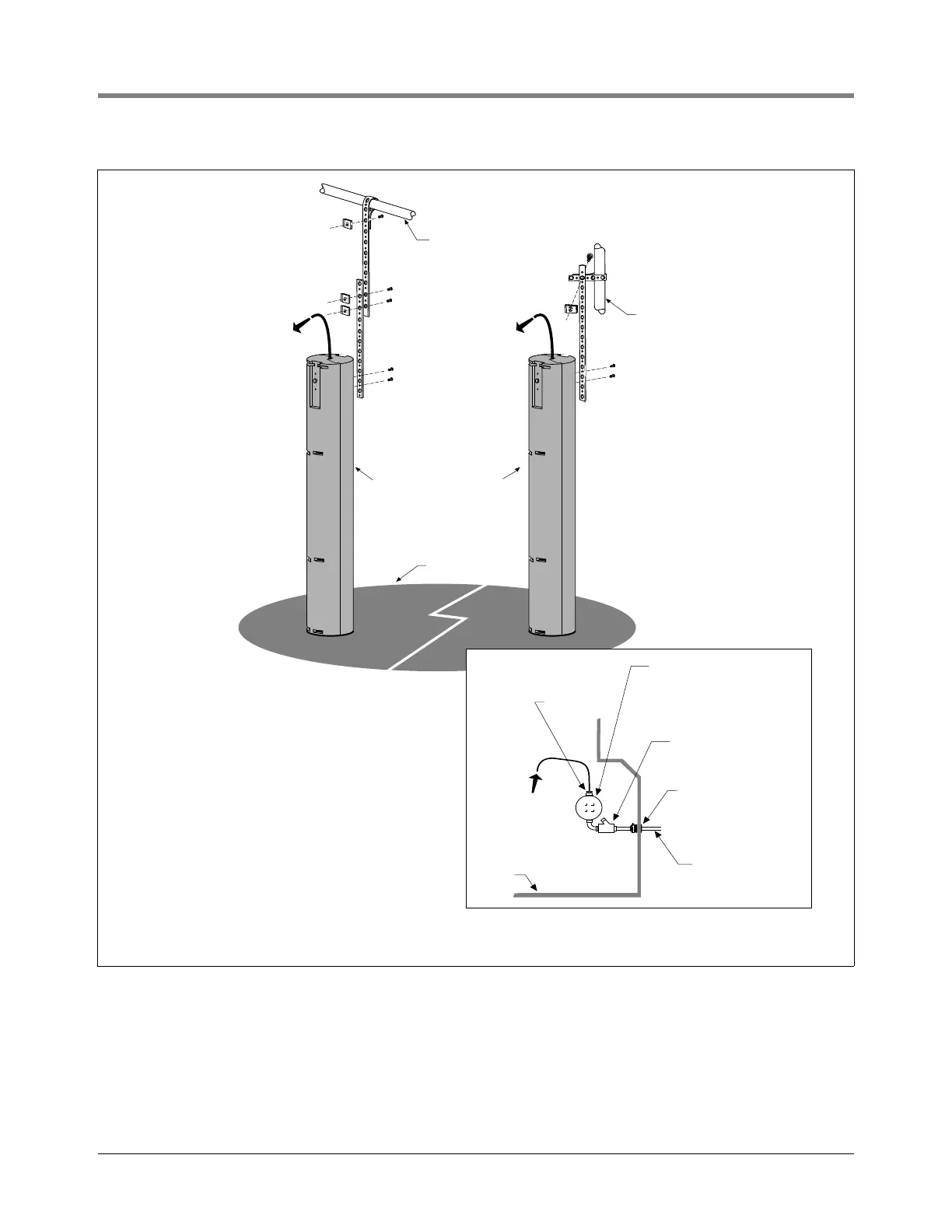

Figure 41. Example Sump Sensor Installations in Sump

Product pipe

Existing conduit

or piping

Sump sensor*

(installation examples)

*Sump sensor should:

1. Rest on the base of the sump.

2. Be positioned as close to outer wall as possible.

3. Be mounted in a true vertical position.

4. Be installed only in a dry sump.

Cable to junction

box and seal-off

(see below)

Sump base

Rubber grommet seal

clamped on inside -

or as recommended by

sump manufacturer

Weatherproof junction

box with 1/2-inch N.P.T.

threads (16 cubic inch

volume minimum)

1/2'' Rigid conduit

to console

Epoxy seal per

NFPA specs

Cord grip

Cable from

piping sump

sensor

Cable to junction box

and seal-off

(see below)

Sump

sensors\pssinst.eps

Veeder-Root Gilbarco EMC Series User Manual
