TLS Magnetostrictive Probes International Installation Guide Process Connections
9

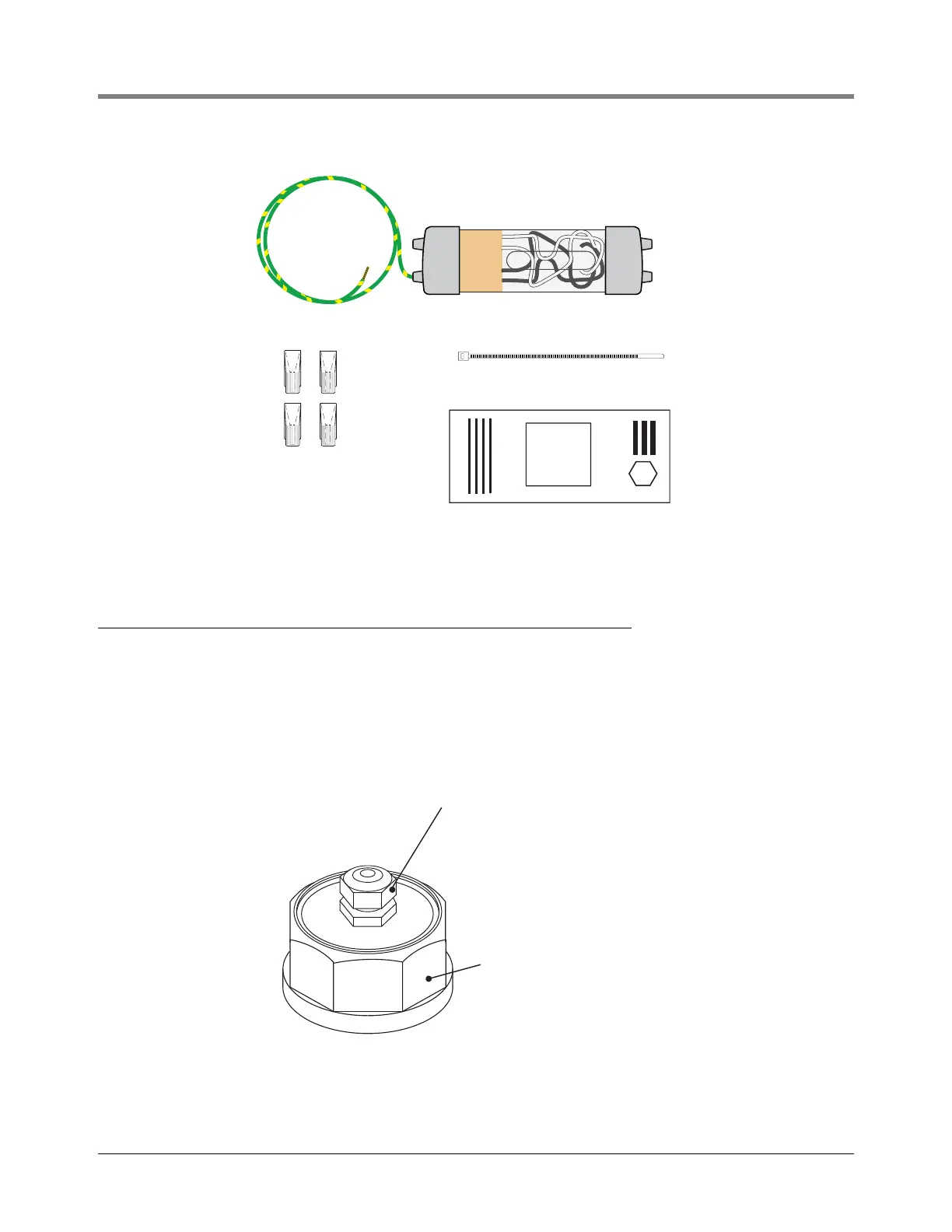

Figure 6. Surge Protector Kit For Wireless Installations - Single Channel P/N 848100-001
Process Connections
A suitable process connection, IP67 minimum, is required for sealing a tank riser pipe or for forming an appropriate
boundary wall. The two riser caps/glands and process connection gland detailed below can be supplied by
Gilbarco Veeder-Root and are included on the manufactures type approval certificates DEMKO 06 ATEX
0508841X and IECEx UL 06.0001X and provide IP67 zone isolation and have been additionally subjected to a
10 bar pressure test.
51MM CAP AND GLAND
Figure 7. 51mm Threaded Riser Cap Assembly P/N 705-100-2203
Cable tie
Encapsulant pack
Wire Nuts
Surge Protector
031-26
Probe leader cable gland*
50.8 mm (2”)
galvanised steel
riser cap
031-13
*Hummel probe leader cable gland
P/N: HSK-M-Ex, Size: M16X1,5 (IP68)
Ratings: II 2 G Ex e II
II 1 D Ex tD A20 IP6X
Cert No. KEMA 99ATEX6971X
