TLS Magnetostrictive Probes International Installation Guide Procedures for Installing Mag Probes
5
Procedures for Installing Mag Probes

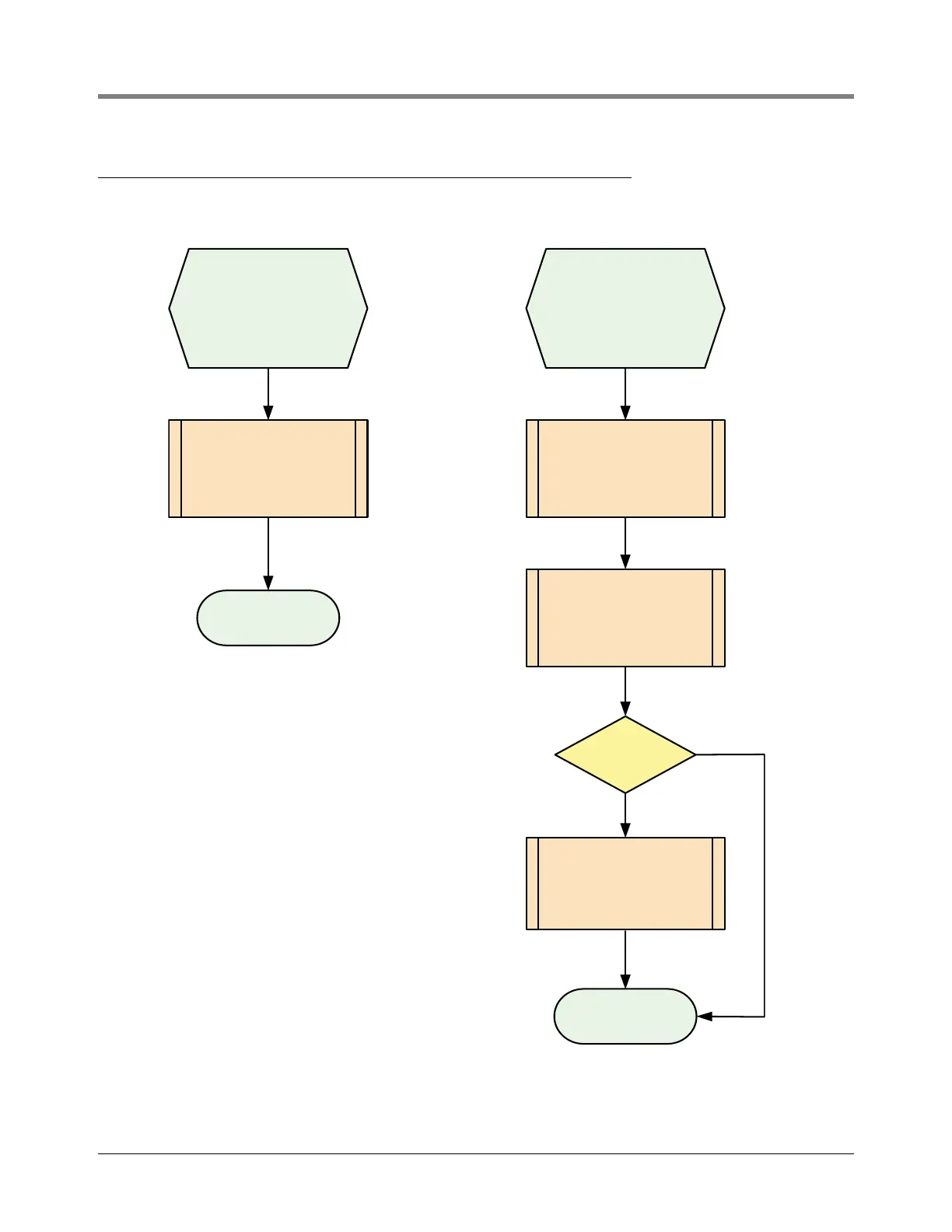

Figure 1. Procedures For Installing Mag Probes Using Wired Connections
Mag Probe
Installation Complete
Perform a surge risk protection
assessment (SRPA), located on
appendix page A-1 of this manual
to determine the possible use of a
dual channel surge protector for
the Mag Probe.
Install a dual channel surge
protector, part number BA-350 or
848100-002, according to Figure
11 of this manual.
Procedure for installing Mag
Probes into storage tanks
using a tube gland.
NOTE: Use a tube gland in
locations where it is
mandatory that the Mag Probe
be equipotentially bonded to
the tank structure.
Install the Mag Probe with a
process connection according to
the instructions on Figure 14 of
this manual.
Riser PipeProcess Connection
Mag Probe
Installation Complete
Is a
surge protector
required ?
No
Yes
Install either a sleeve or an
adapter as shown on Figure 17,
then install the Mag Probe in a
riser pipe according to the
instructions on Figure 13 of this
manual.
Procedure for installing Mag
Probes into storage tanks
using a riser pipe.
NOTE: Use a riser pipe in
locations that do not require
bonding between the Mag
Probe and the tank structure.
To Next Page
