TLS Magnetostrictive Probes International Installation Guide Probe and Riser Installation Criteria
13
Probe and Riser Installation Criteria
Mag probe installations require a 2-inch or 3-inch (51 or 76mm) riser, regardless of tank entry size. Entry sizes of 1
inch, or entries larger than 3 inches must be with the suitable fittings.
The canister of the probe must be completely contained within the riser. In all cases, the probe must rest on the
bottom of the tank (see
Figure 13). Risers, when fitted, should be a minimum of 100mm above the probe canister.

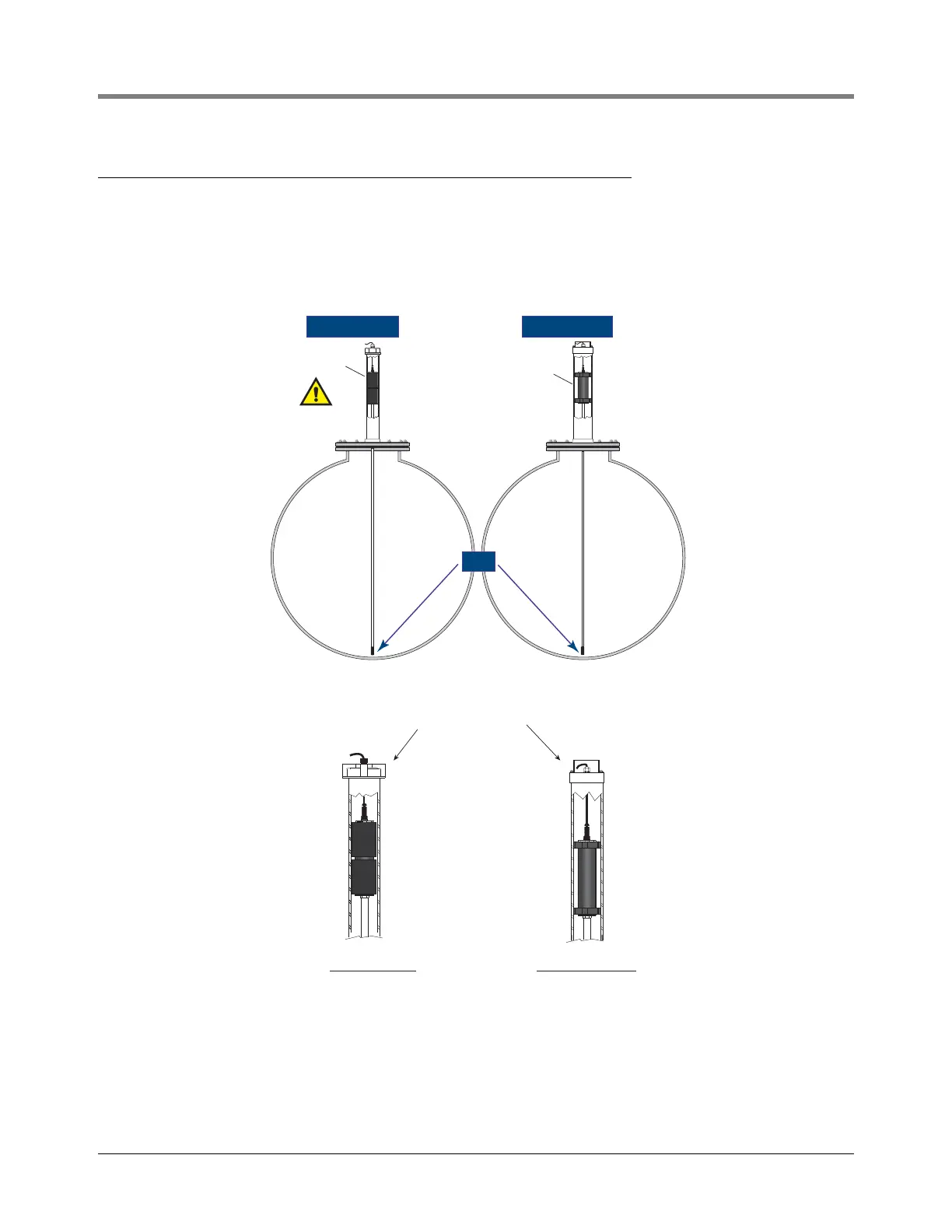

Figure 13. Typical Probe Installations In Riser Pipe
51mm Riser
Riser must be
51mm ID and free
of burrs.
76mm Riser
76mm Entry51mm Entry
Boot
031-10
View 1 View 2
Installing with a
76mm or 102mm Riser Pipe
Installing with a
51mm Riser Pipe
Note: The riser pipe cap forms a suitable
process connection at the boundary wall.
To Next Page
