TLS Magnetostrictive Probes International Installation Guide Process Connections
10
76MM CAP AND GLAND

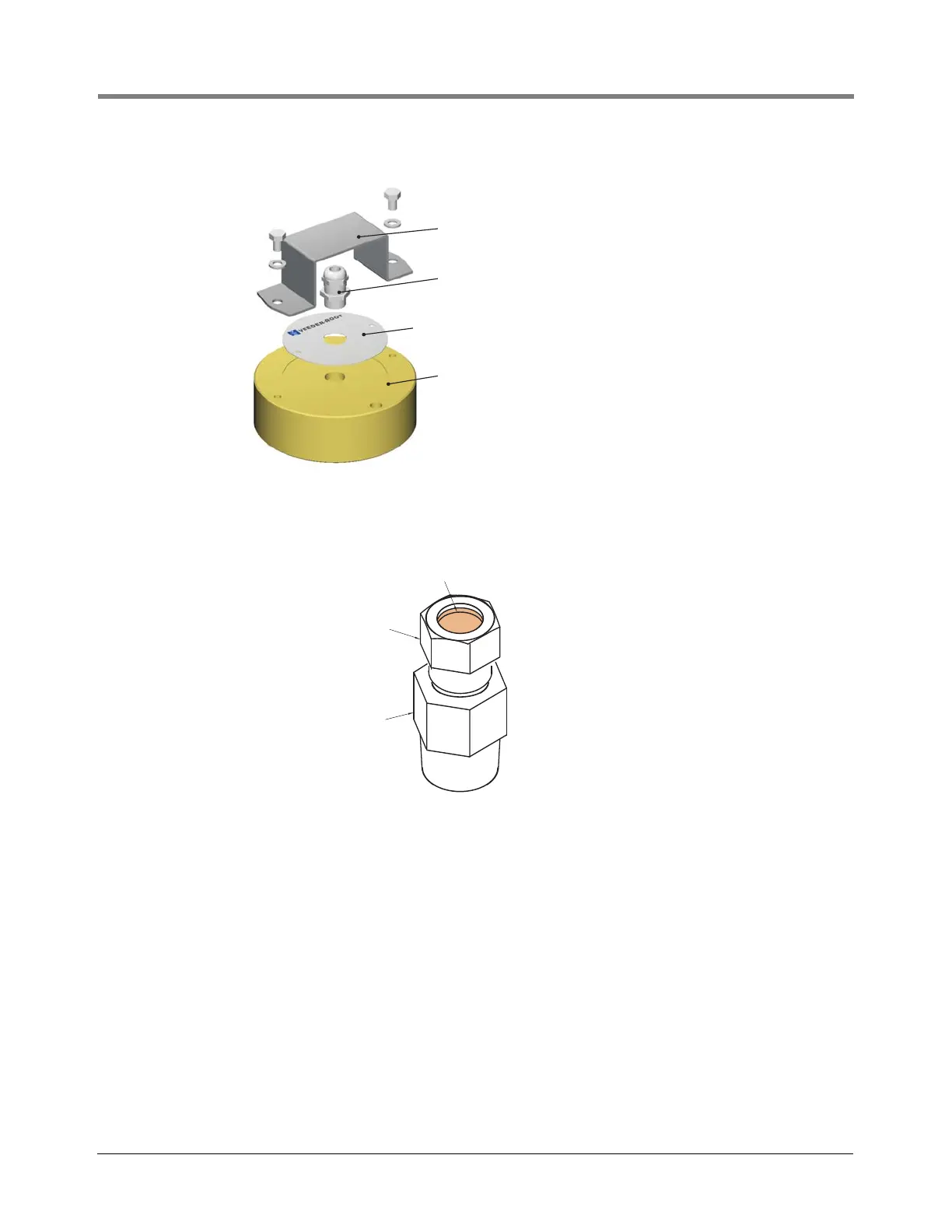

Figure 8. 76mm Riser Cap Assembly
MAG PROBE PROCESS CONNECTION (GLAND)
Figure 9. Mag Probe Process Connection (Gland) P/N 501-000-1206
Shield (if required)
Use fitting tool 705-100-3033
to install or remove the cap
3-inch (76mm) BSP riser cap
Probe leader cable gland*
Label
*Hummel probe leader cable gland
P/N: HSK-M-Ex, Size: M16X1,5 (IP68)
Ratings: II 2 G Ex e II
II 1 D Ex tD A20 IP6X
Cert No. KEMA 99ATEX6971X
1-inch BSP - 3/4” Coupling
Olive
Locknut
031--23
To Next Page
