Vega VEGAPULS 63 - 11 Supplement: Hygienic Fitting Dimensions (Type 1); Hygienic Fitting 1 Dimensions

97
11 Supplement
VEGAPULS 63 • Modbus and Levelmaster protocol
41364-EN-170711
VEGAPULS63,hygienictting1
ø 90 mm
(3.54")
ø 78 mm
(3.07")
101 mm
(3.98")
38 mm
(1.50")
15 mm
(0.59")
101 mm
(3.98")
38 mm
(1.50")
15 mm
(0.59")
89 mm
(3.50")
16 mm
(0.63")
ø 50 mm
(1.97")
15 mm
(0.59")
83 mm
(3.27")
ø 90 mm
(3.54")
ø 66 mm
(2.60")
5
5
5
5 5
51 2
3 54

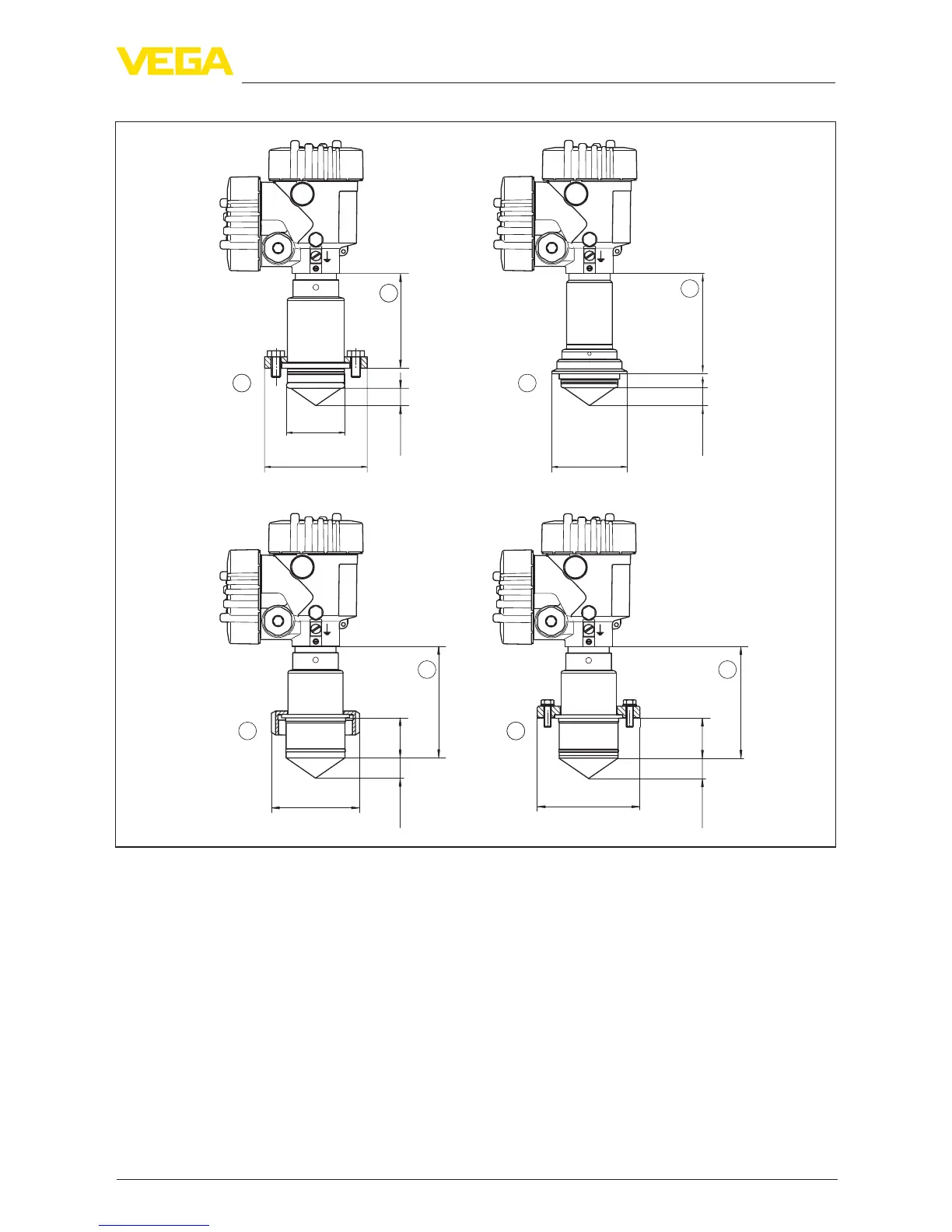

Fig.58:VEGAPULS63,hygienictting1
1 NeumoBiocontrol
2 Tuchenhagen Varivent DN 25
3 HygienicttingLA
4 HygienicttingLB
