Vega VEGAPULS 64 - Flange mounting options

16
4 Mounting
VEGAPULS 64 • Two-wire 4 … 20 mA/HART
51141-EN-210219

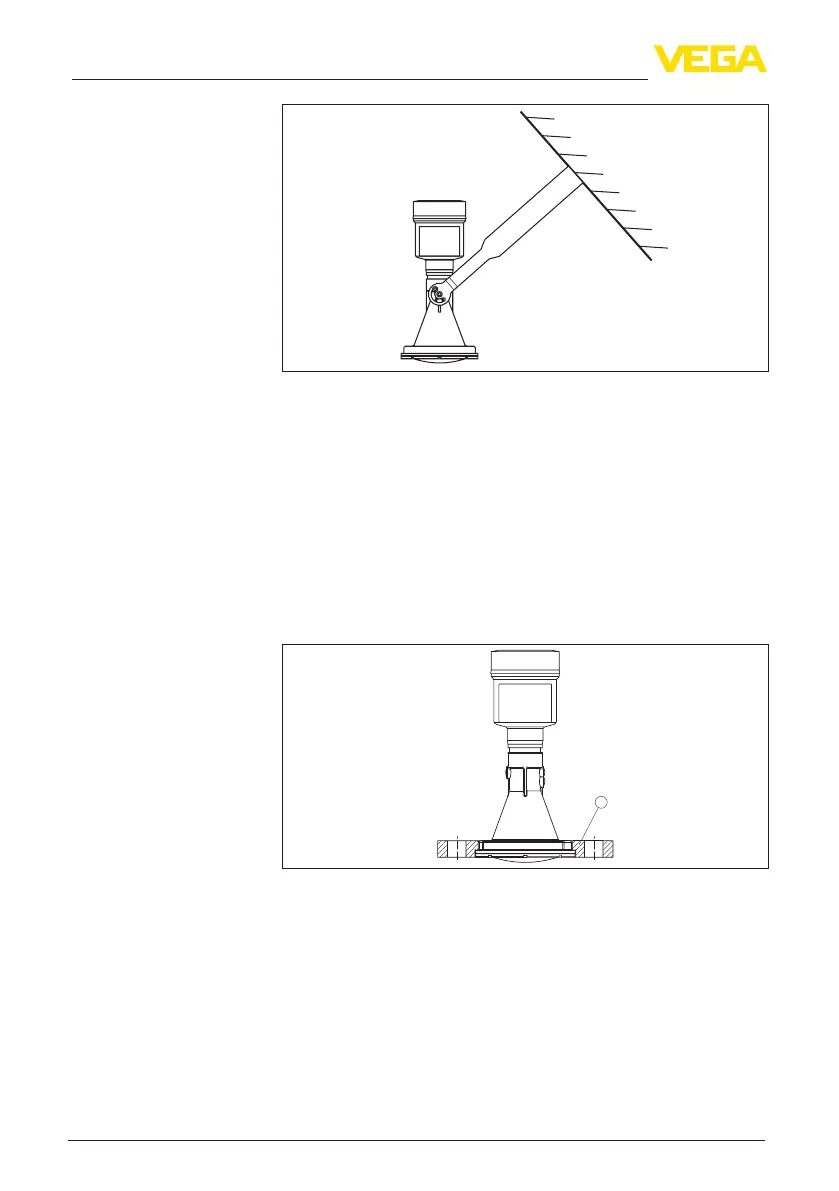

Fig. 5: Wall mounting with inclined wall via the mounting strap with length
300 mm
Twoversionsareavailableformountingtheinstrumentonanozzle:
•
Combicompressionange
•
Adapterange
Combicompressionange
Thecombicompressionangeissuitablefordierentvesselanges
DN 80, ASME 3" and JIS 80. It comes not sealed against the radar
sensorandcanthusonlybeusedunpressurized.Itcanberetrotted
oninstrumentswithsinglechamberhousing,retrottingtoadouble
chamber housing is not possible.
1
Fig. 6: Combi compression ange
1 Combi compression ange
Adapterange
TheadapterangeisavailablefromDN100,ASME4"andJIS100.It
is permanently connected with the radar sensor and sealed.
Flange
