11 Supplement
VEGAPULS 69 • Foundation Fieldbus
47251-EN-160815
Plastic housing
~ 69 mm
(2.72")
ø 79 mm
(3.11")
112 mm
(4.41")
M20x1,5/
½ NPT
~ 84 mm
(3.31")
M16x1,5
112 mm
(4.41")
M20x1,5/
½ NPT
1
2
ø 79 mm
(3.11")

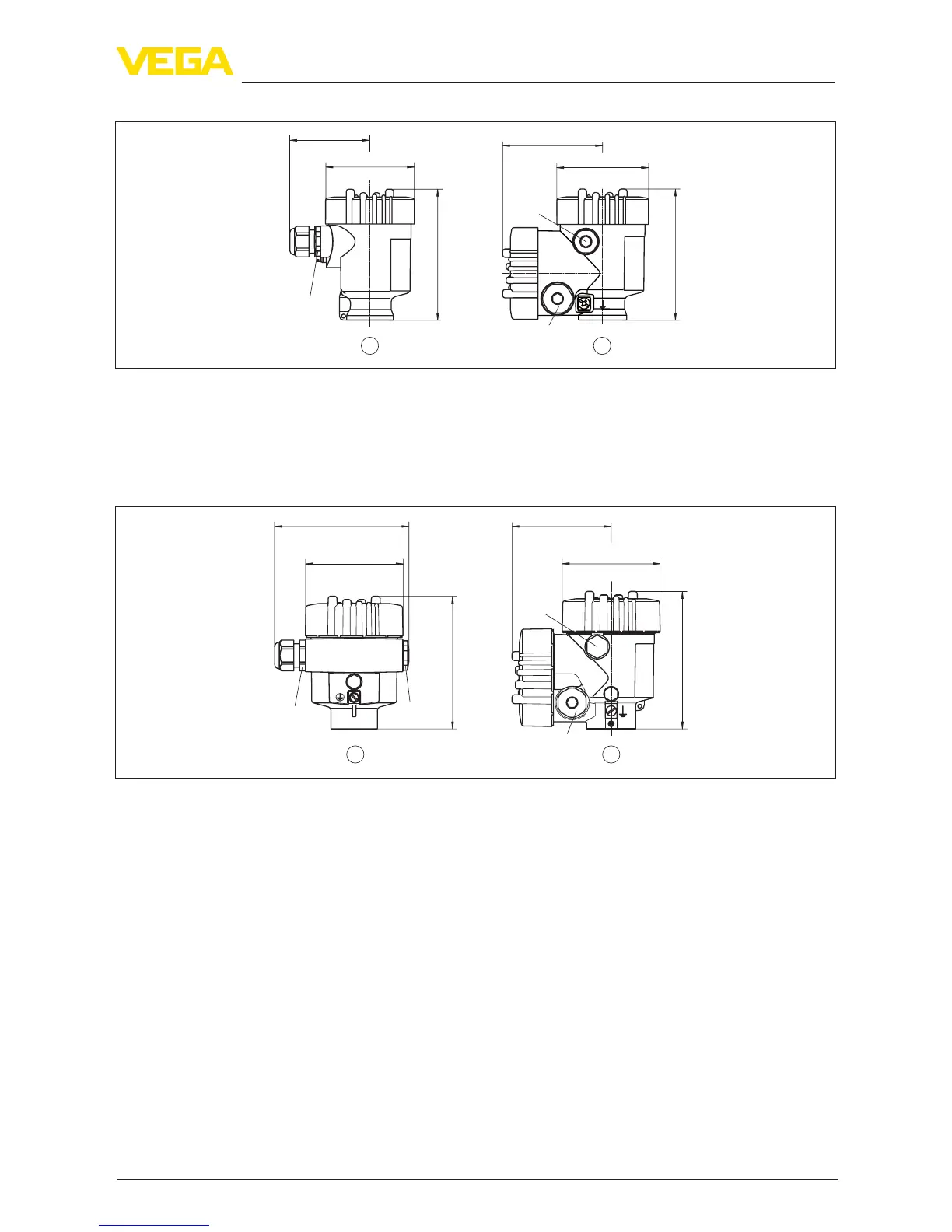

Fig.63:HousingversionswithprotectionratingIP66/IP67-withintegrateddisplayandadjustmentmodulethe
housingis9mm/0.35inhigher
1 Single chamber version
2 Double chamber version
Aluminium housing
21
ø 86 mm
(3.39")
~ 116 mm
(4.57")
116 mm
(4.57")
M20x1,5
M20x1,5/
½ NPT
~ 87 mm
(3.43")
M16x1,5
ø 86 mm
(3.39")
120 mm
(4.72")
M20x1,5/
½ NPT
Fig.64:HousingversionswithprotectionratingIP66/IP68(0.2bar)-withintegrateddisplayandadjustment
modulethehousingis9mm/0.35inhigher
1 Single chamber version
2 Double chamber version
