86
11 Supplement
VEGAPULS 69 • Foundation Fieldbus
47251-EN-160815
Aluminium housing with protection rating IP 66/IP 68 (1 bar)
120 mm
(4.72")
~ 105 mm
(4.13")
116 mm
(4.57")
~ 150 mm
(5.91")
ø 86 mm
(3.39")
ø 86 mm
(3.39")
M20x1,5/
½ NPT
M16x1,5
2
M20x1,5
M20x1,5
1

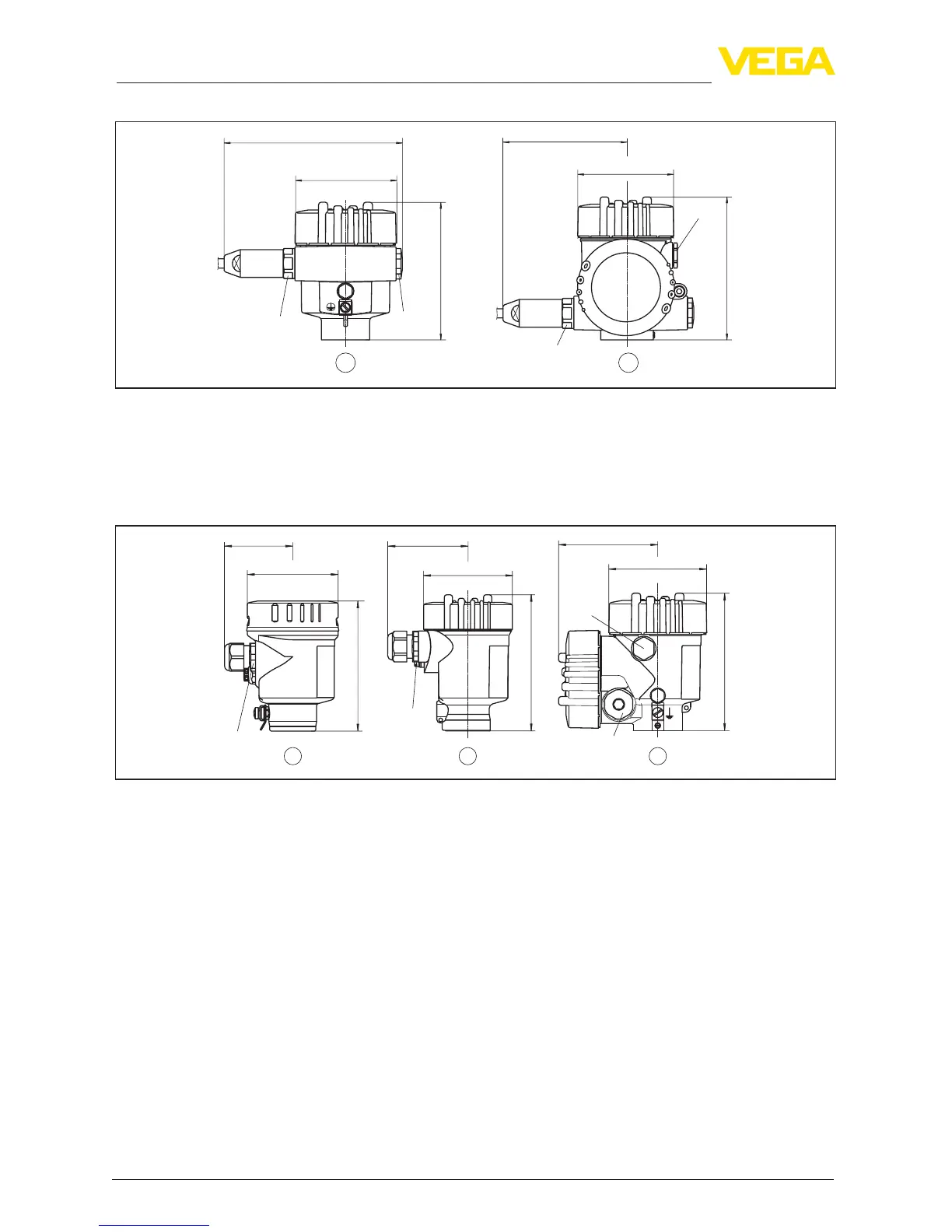

Fig.65:HousingversionwithprotectionratingIP66/IP68(1bar)-withintegrateddisplayandadjustmentmodule
thehousingis9mm/0.35inhigher
1 Single chamber version
2 Double chamber version
Stainless steel housing
~ 69 mm
(2.72")
ø 79 mm
(3.11")
117 mm
(4.61")
M20x1,5/
½ NPT
~ 59 mm
(2.32")
ø 80 mm
(3.15")
112 mm
(4.41")
M20x1,5/
½ NPT
~ 87 mm
(3.43")
ø 86 mm
(3.39")
120 mm
(4.72")
M20x1,5/
½ NPT
M16x1,5
321
Fig.66:HousingversionswithprotectionratingIP66/IP68(0.2bar)-withintegrateddisplayandadjustment
modulethehousingis9mm/0.35inhigher
1 Single chamber version, electropolished
2 Single chamber version, precision casting
3 Double chamber version, precision casting
