VEGAPULS 69 • Foundation Fieldbus
47251-EN-160815
Stainless steel housing with protection rating IP 66/IP 68, 1 bar
117 mm
(4.61")
~ 103 mm
(4.06")
ø 79 mm
(3.11")
120 mm
(4.72")
~ 105 mm
(4.13")
ø 86 mm
(3.39")
M20x1,5
M20x1,5/
½ NPT
M16x1,5
~ 93 mm
(3.66")
ø 80 mm
(3.15")
112 mm
(4.41")
M20x1,5/
½ NPT
3
21

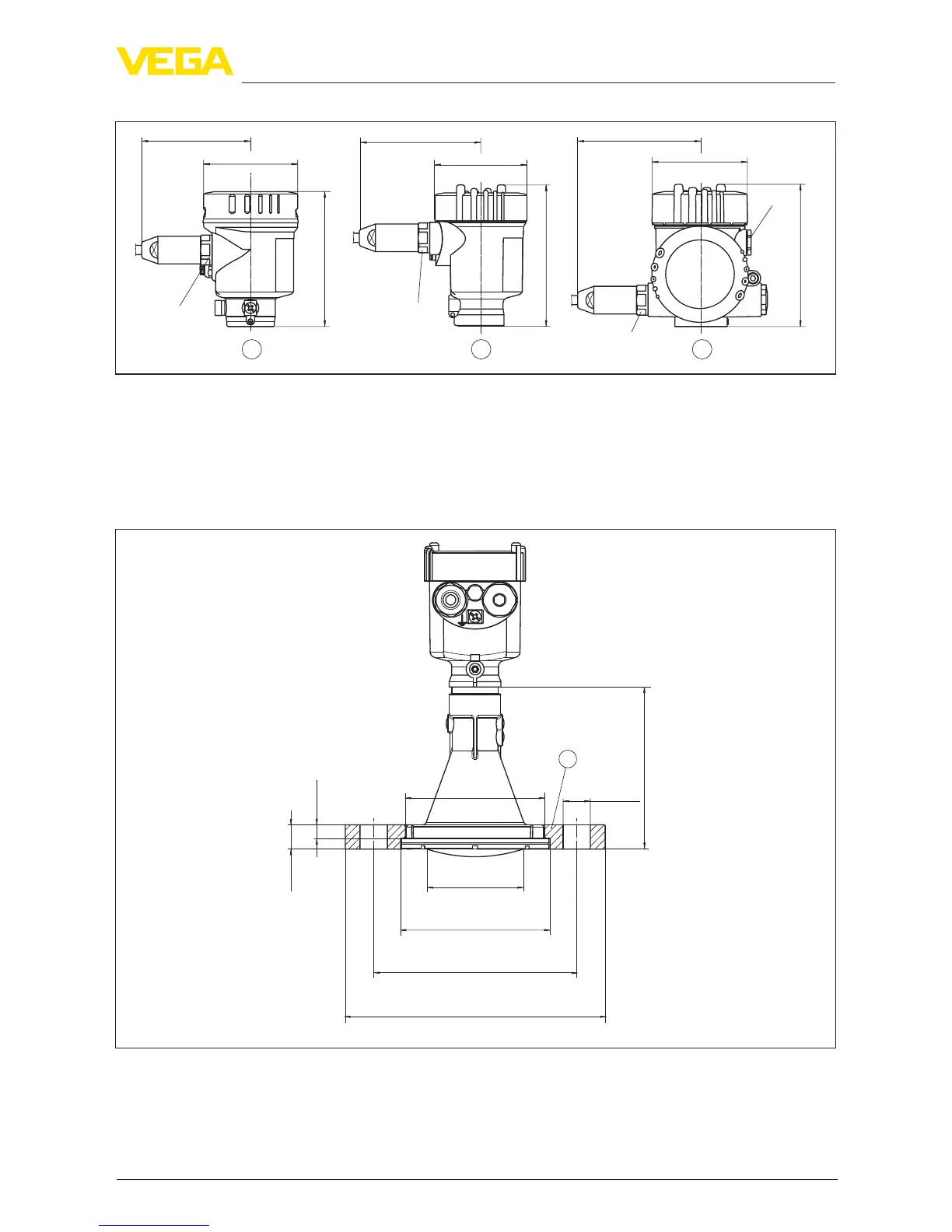

Fig.67:HousingversionwithprotectionratingIP66/IP68(1bar)-withintegrateddisplayandadjustmentmodule
thehousingis9mm/0.35inhigher
1 Single chamber version, electropolished
2 Single chamber version, precision casting
3 Double chamber version, precision casting
VEGAPULS69,plastichornantennawithcompressionange
126 mm
(4.96")
10,5 mm
(0.41")
19 mm
(0.75")
ø 75 mm
(2.95")
ø 115 mm
(4.53")
ø 156 mm
(6.14")
ø 200 mm
(7.87")
ø 21 mm
(0.83")
ø 107 mm
(4.21")
1
Fig.68:Radarsensorwithcompressionangesuitableforanges3"150lbs,DN80PN16
1 Compressionange
