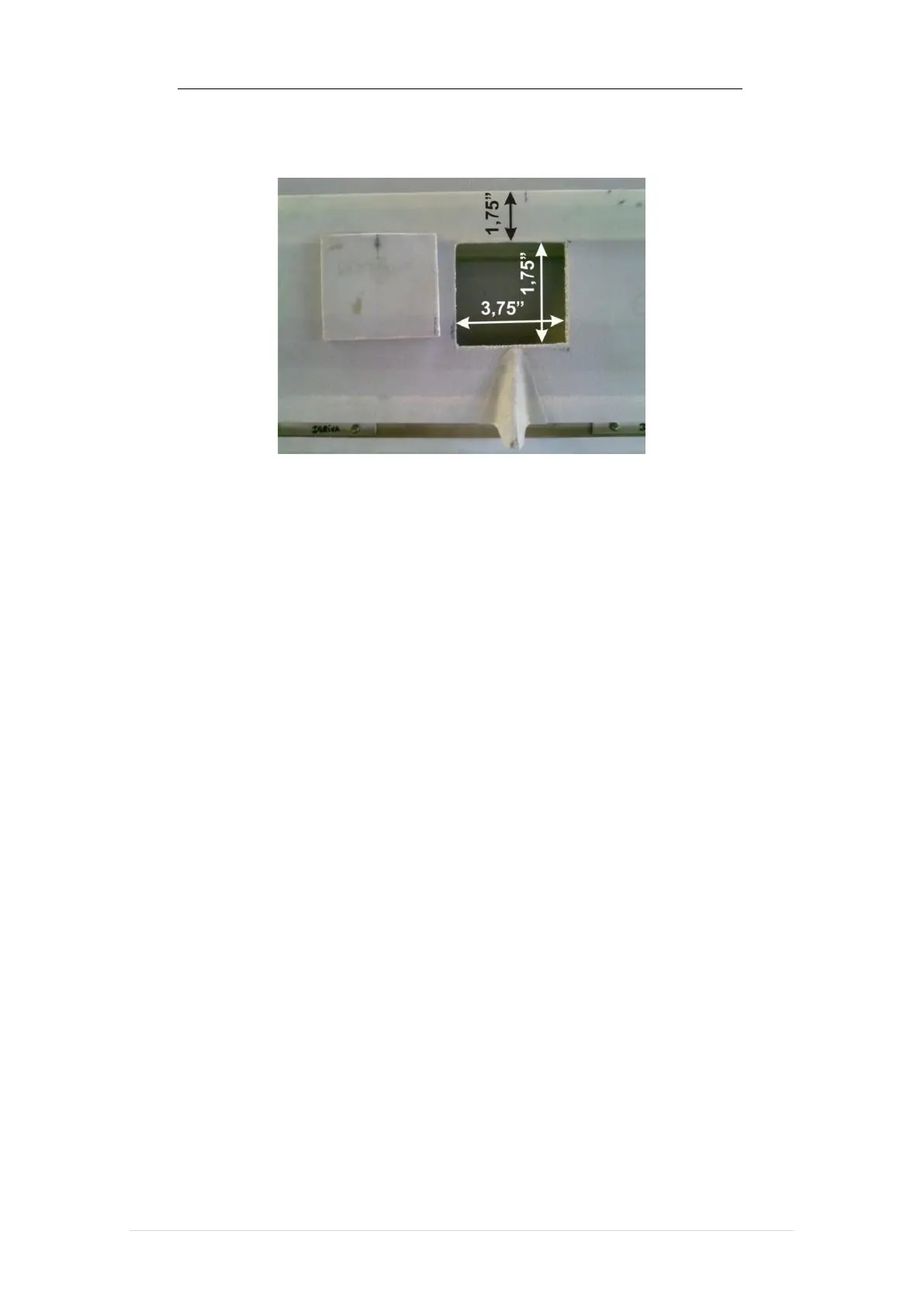

trim tab actuation as well as its actuation arm positioning. Cut the bottom cladding as
shown in the figure below.
Dig the core and place a MICRO paste for finishing. Roll out triangles below
rectangle corners with anchor nuts to attach the servo cover. Make a slit in the line to exit
the actuator arm. Foam the tear cap with height varying according to the height of the
trim tab horn. Roll the foam on top of a glass with 2 layers of BID. After curing, remove
foam and glue over tear site.
