excess overhanging the edge of the plywood stiffeners or sand these edges to shape after
curing.
5.5 Front seat reinforcement

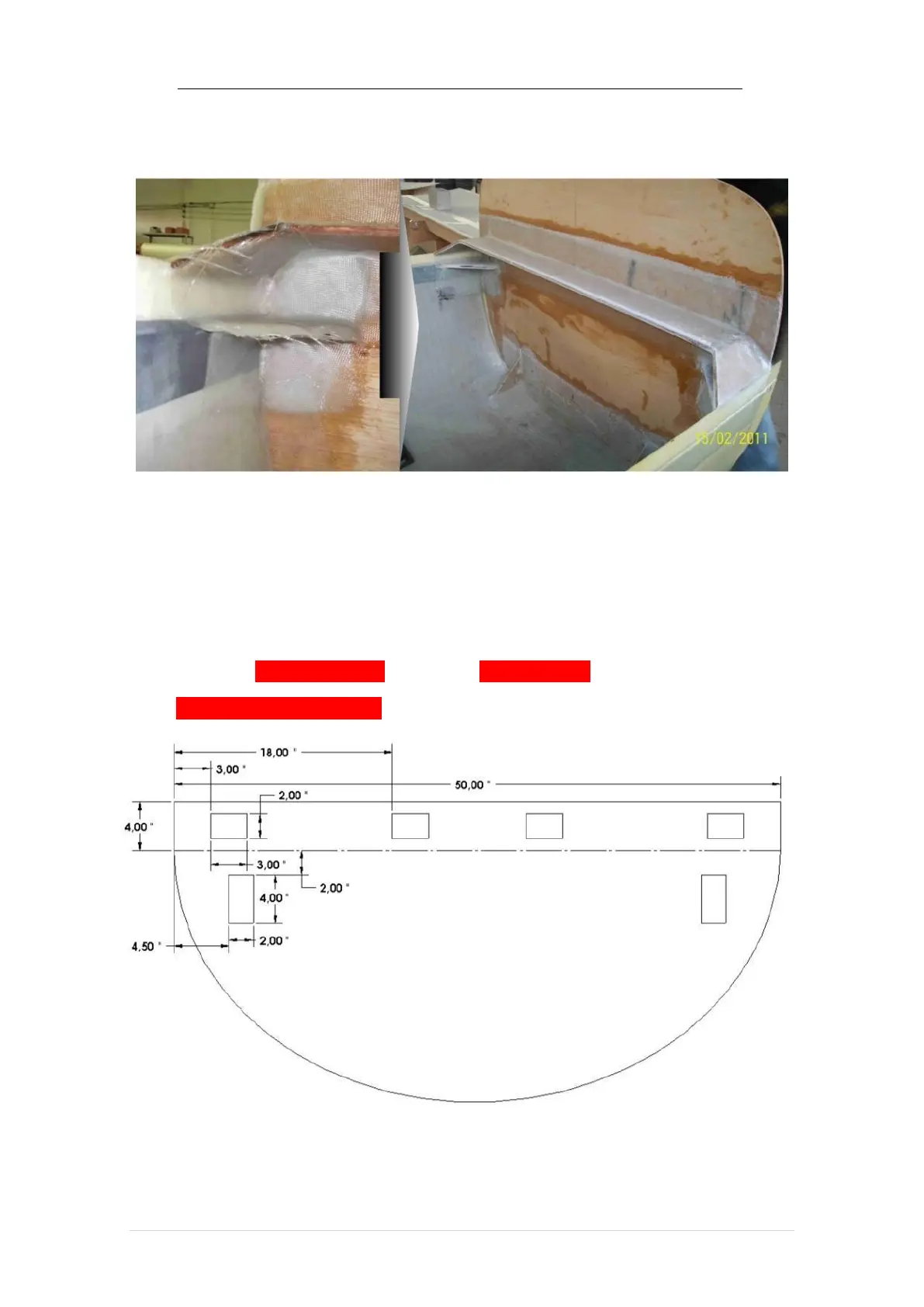

Cut the front seat reinforcement from the supplied two-layer prepreg panel material.
Review the sketch below, locate and install rigid points for positioning the control. The
installation of rigid points is more easily done right after the cutout of the prepreg panel.
Cut out the front of the panel for placement of hard points. Once positioned, cover the
rigid points with 2-layer BID tape with at least 1 inch overlap the edges of the cutout.
CORRECT DIMENSIONS
