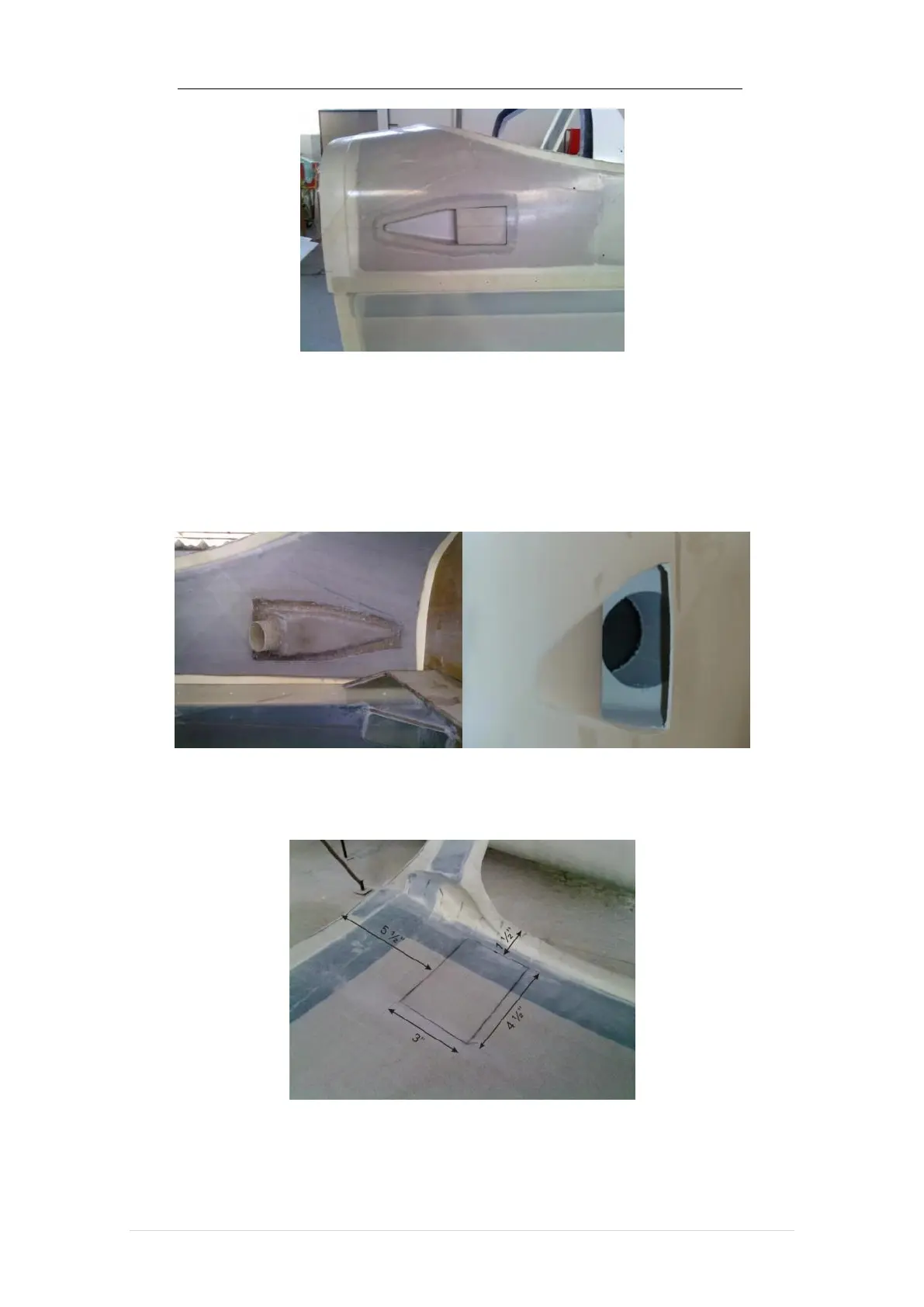

Mark out 100mm in front of the trailing edge of the design for cutting. Cut the
“triangular” part through both facings. Outline ½ inch around the design and cut out the
inner paneling of the panel and remove the core. Laminate 3 layers of BID on the
rectangular part from the inside. Make a paste with FLOX and fix the NACA input on the
inside as shown below.
5.17.2 Door bumper booster
Outline a 3-inch by 4.5” rectangle as shown below.
Prepare the plywood hard points of the same size. Prepare the anchor nuts by
placing them inverted into the wood and secure with the rivets. SUA
