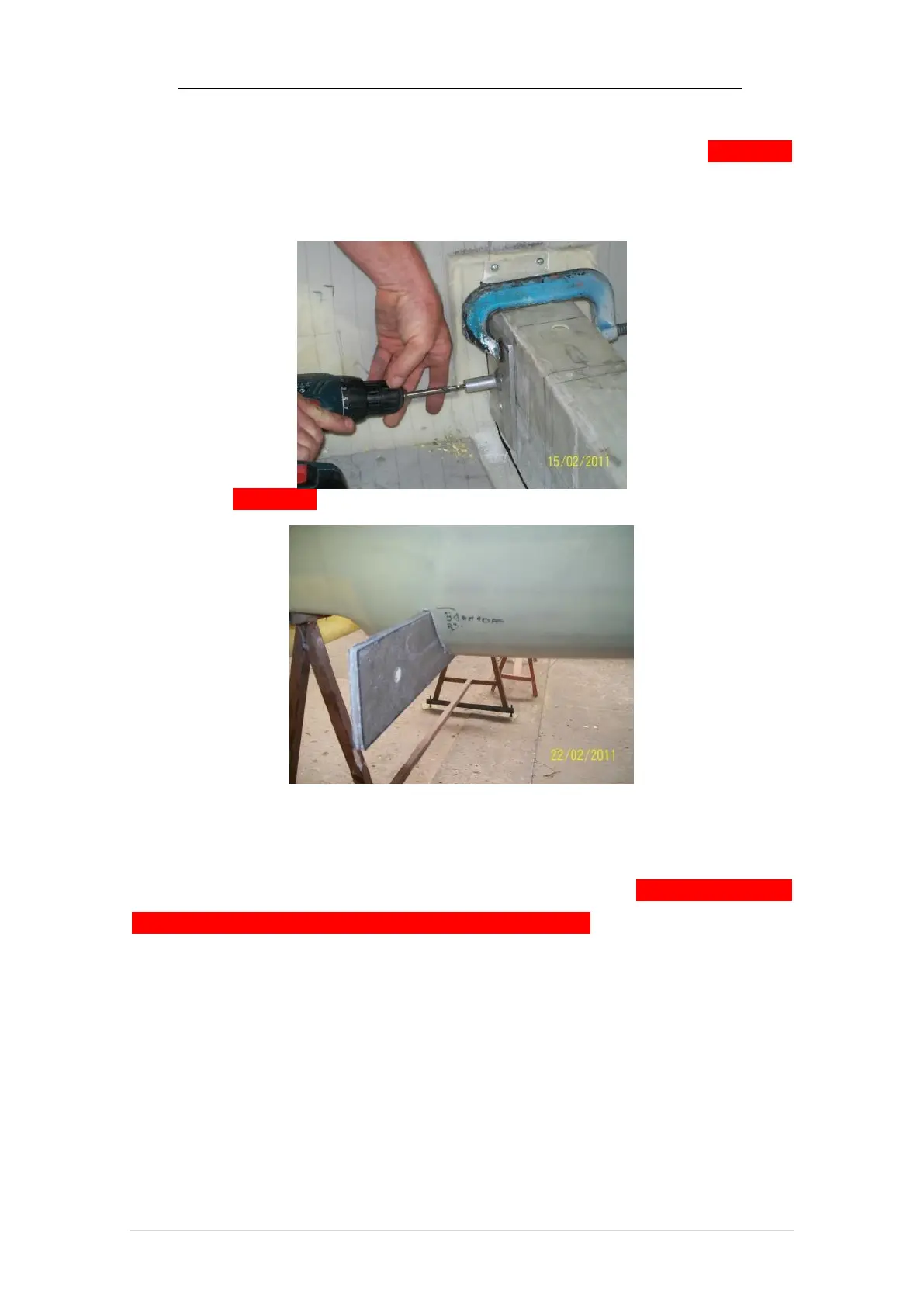

Mark the position of the eyelet centered on the phenolic reinforcement included in
the wing spar box and drill a guide hole. After the guide hole, use a hole saw. two inches
and drill a hole through the spar box together with the spar.
With the wing still in place, make sure the phenolic and rear wing spar are centered.
drill a hole of XX inches centered through these spars.
5.21 wing-fuselage junction
With the wing still in place, prepare the finish of the wing-fuselage junction.
Position it, fastening it to the fuselage and fitting into the wing. fill the edges with a
MICRO paste and laminate with 3 layers of 3 inch wide BID.
