Veloce 400 - Lamination of the Firewall Lower Reinforcements

Chapter 5 - Fuselage
5.4 - Fire wall
Page 51
5.4.2.1 Lamination of lower firewall reinforcements
Clean and rub with a coarse sandpaper all areas that will be covered with layers

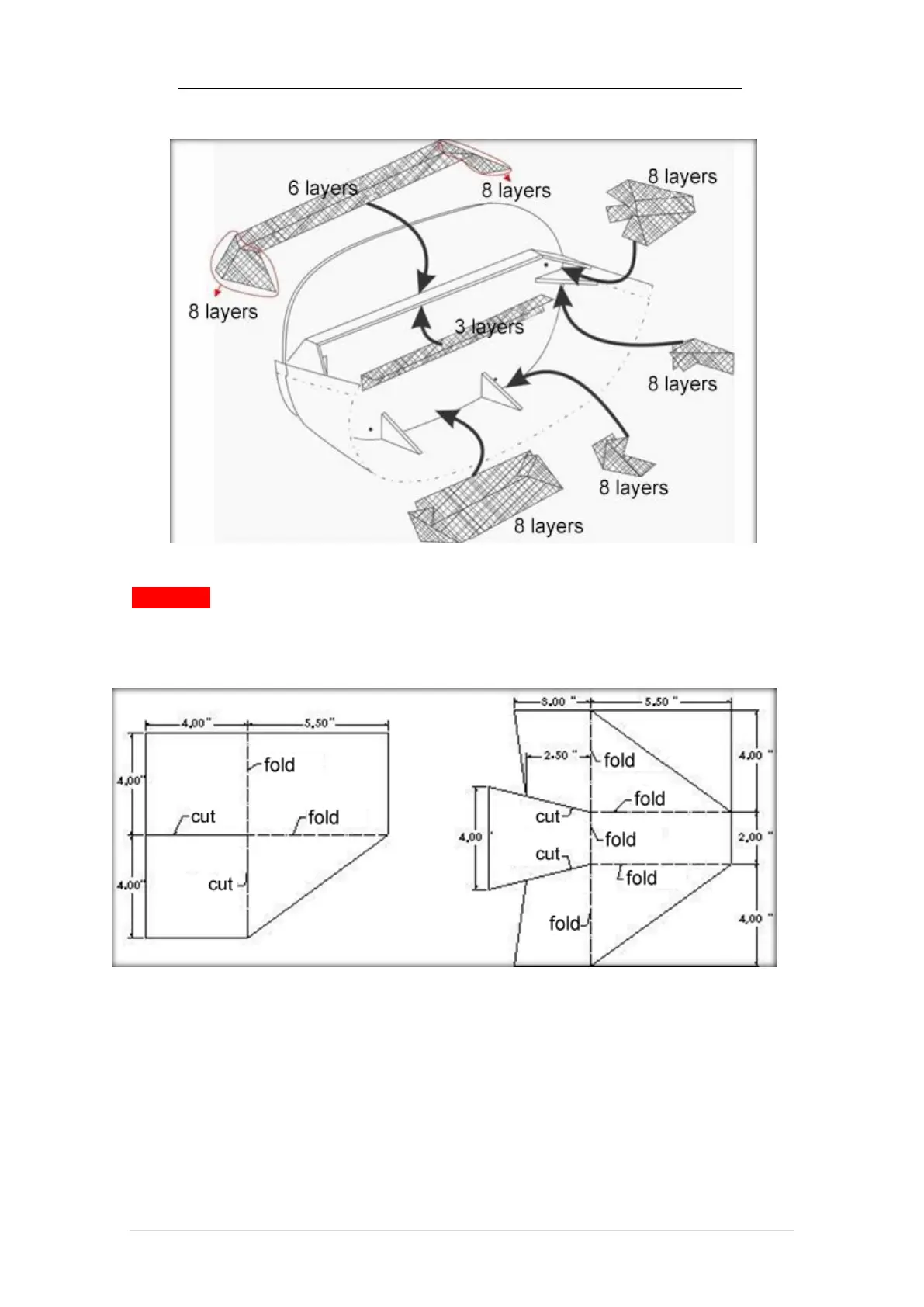

BID glued around the reinforcements. Make paper patterns approximately the shape and
sizes shown in the attached drawing. Try to optimize the pattern to provide complete
coverage over the firewall screw areas.
