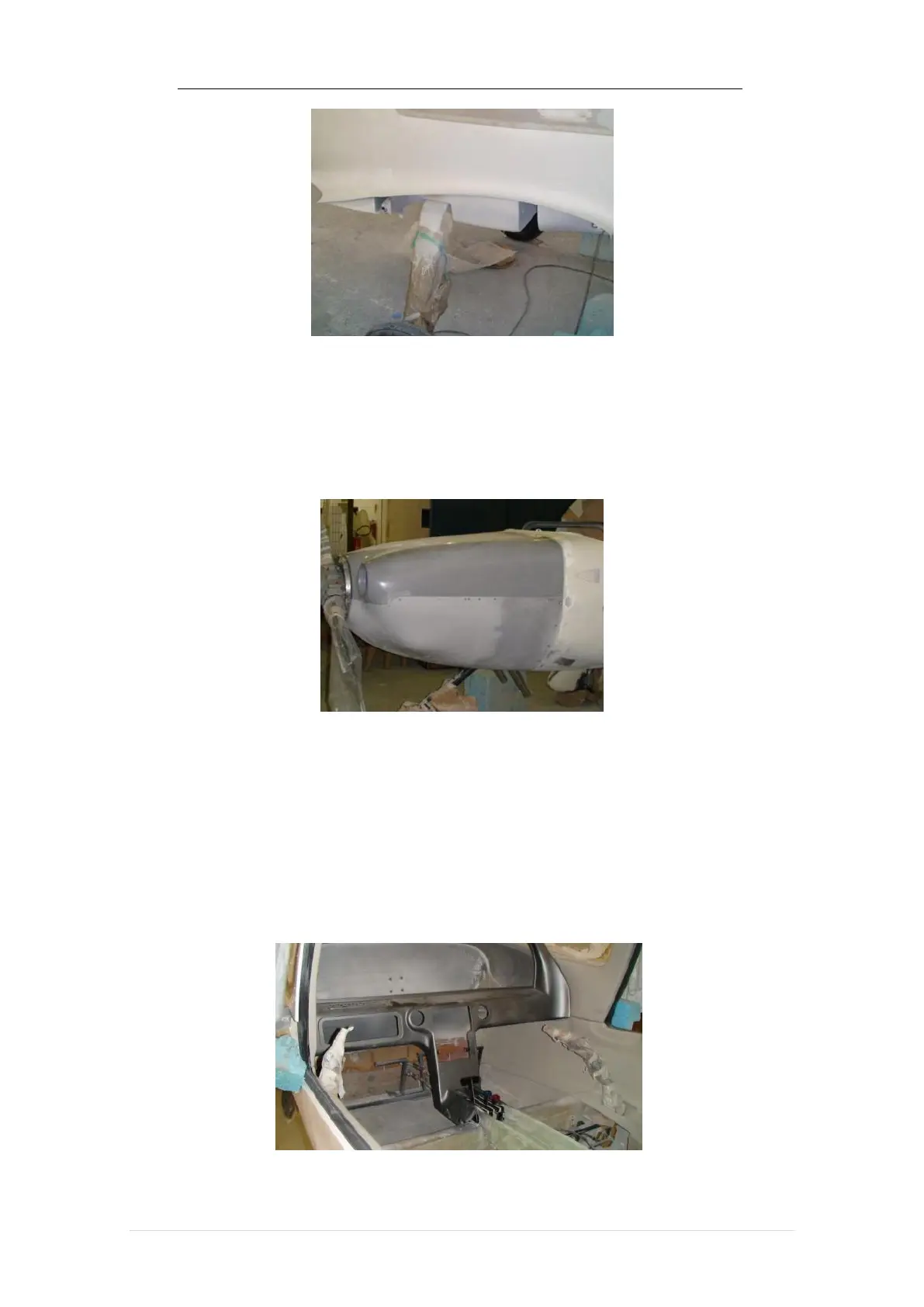

5.22 Engine Cowl
After positioning the engine and beke, fit the upper and lower cover of the cowl
with clecos provisionally and fit the fuselage leveling with it and aligning it with the
engine shaft.
5.23 INTERNAL FINISHES
The position of the panel is defined by the fit provided by the front side finishing
columns. Fit the trim and ceiling trim for better positioning, align the panel and secure it
with screws from the outside of the fuselage. Align the other finishes with the contours
of doors and windows. Work on the finish for a better fit.
After satisfactory adjustment, laminate the panel into the final position.
