Verint Video Intelligence Solutions 11
Nextiva S2750e Series User Guide

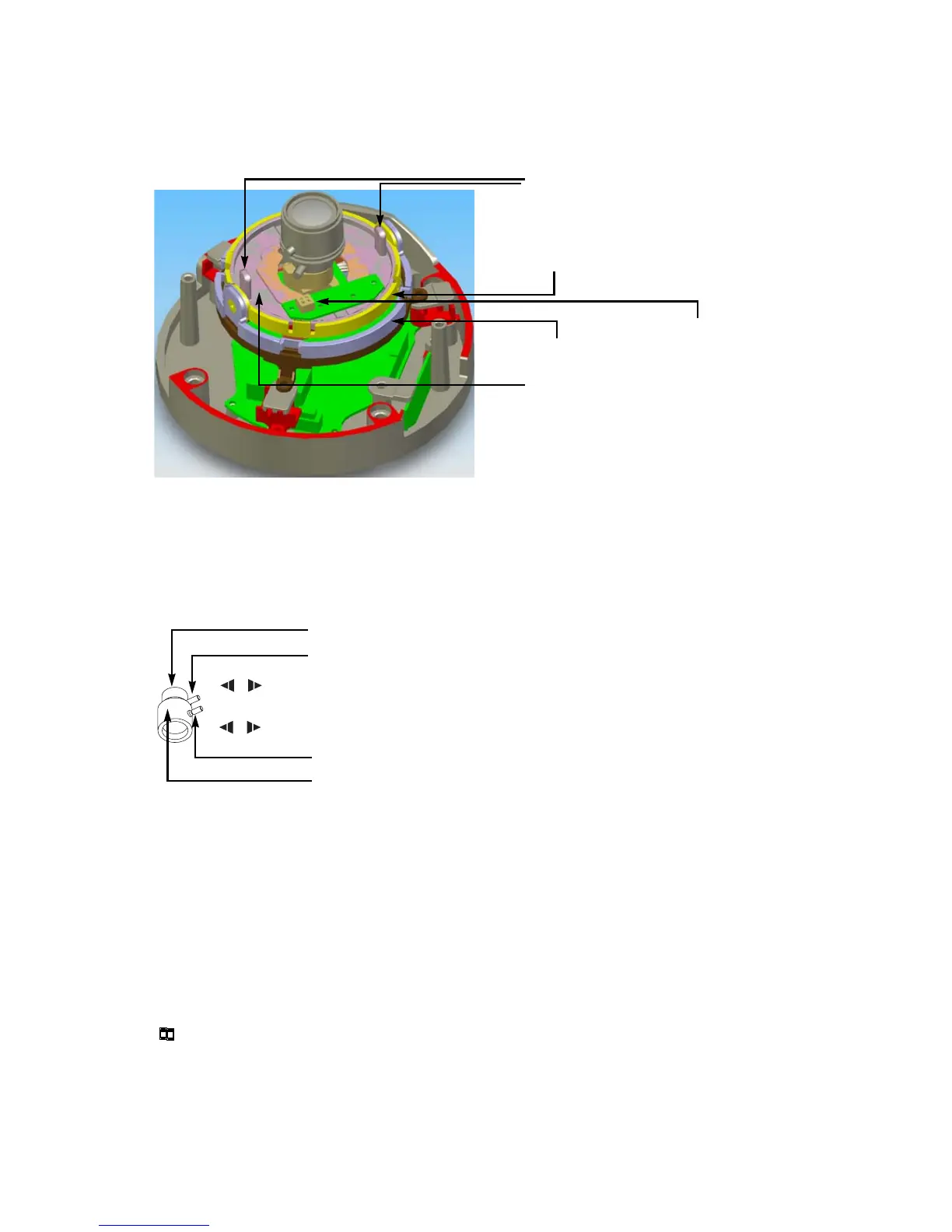

4. Adjust the pan angle by turning the pan rim to the right or to the left (360 degrees of
liberty). You will hear clicks as you turn the rim.
5. Adjust the tilt angle by pushing the tilt rim to the right or to the left (90 degrees of
liberty). You will hear clicks as you push the rim.
6. Using the two rotation knobs, position the TOP mark on the sensor module so that the
arrow points towards the top of the image.
7. Adjust the field angle and the focus with the adjustment rings on the lens:
a. To zoom out to see the full spectrum, move the zoom screw towards the W (wide)
mark.
b. To concentrate on a specific area, move the zoom screw towards the T (telephoto)
mark.
c. To focus on a near object, move the focus screw towards the N (near) mark.
d. To focus on a far object, move the focus screw towards the infinite mark.
8. To activate back light compensation for adjusting the exposure level to allow more
detail to be viewed, put the BLC DIP switch to the ON position.
Rotation knobs
Tilt rim
Pan rim
TOP mark
DIP switches for
BLC and AGC
.
7
4
Zoom screw
Zoom adjustment ring
Focus adjustment ring
Focus screw
ON
21
BLC
AGC
