2: Mounting and Configuring the IP Camera
8 Verint Video Intelligence Solutions
Installing the Camera
The installation process varies depending on your supply power: 12V DC or PoE.
Power-over-Ethernet (PoE) enables you to power the camera and establish its Ethernet
connection in a single operation. The optional PoE kit sold by Verint contains two items: an
injector and a power cord. The connection procedure may vary if you use another PoE kit.
Verint also sells a 12V DC universal power supply.
To perform a 12V DC power connection with the universal power supply sold by
Verint:
1. If the electrical plug installed on the power supply is the right one for the country of
operation, go to step 4.
2. Remove the installed plug by pushing the PUSH button and keeping it pushed while
turning the plug in the counterclockwise direction.
3. Insert the required plug on the power supply then turn it in the clockwise direction until
you hear a click.
4. Tie together the power supply wire with the dashed white lines and the black wire on
the camera using a splice.
5. Tie together the other power supply wire and the red wire on the camera using a splice.
6. Power the camera by connecting the electric plug into the outlet.
For any other power supply, refer to the manufacturer documentation for the proper wiring
scheme.

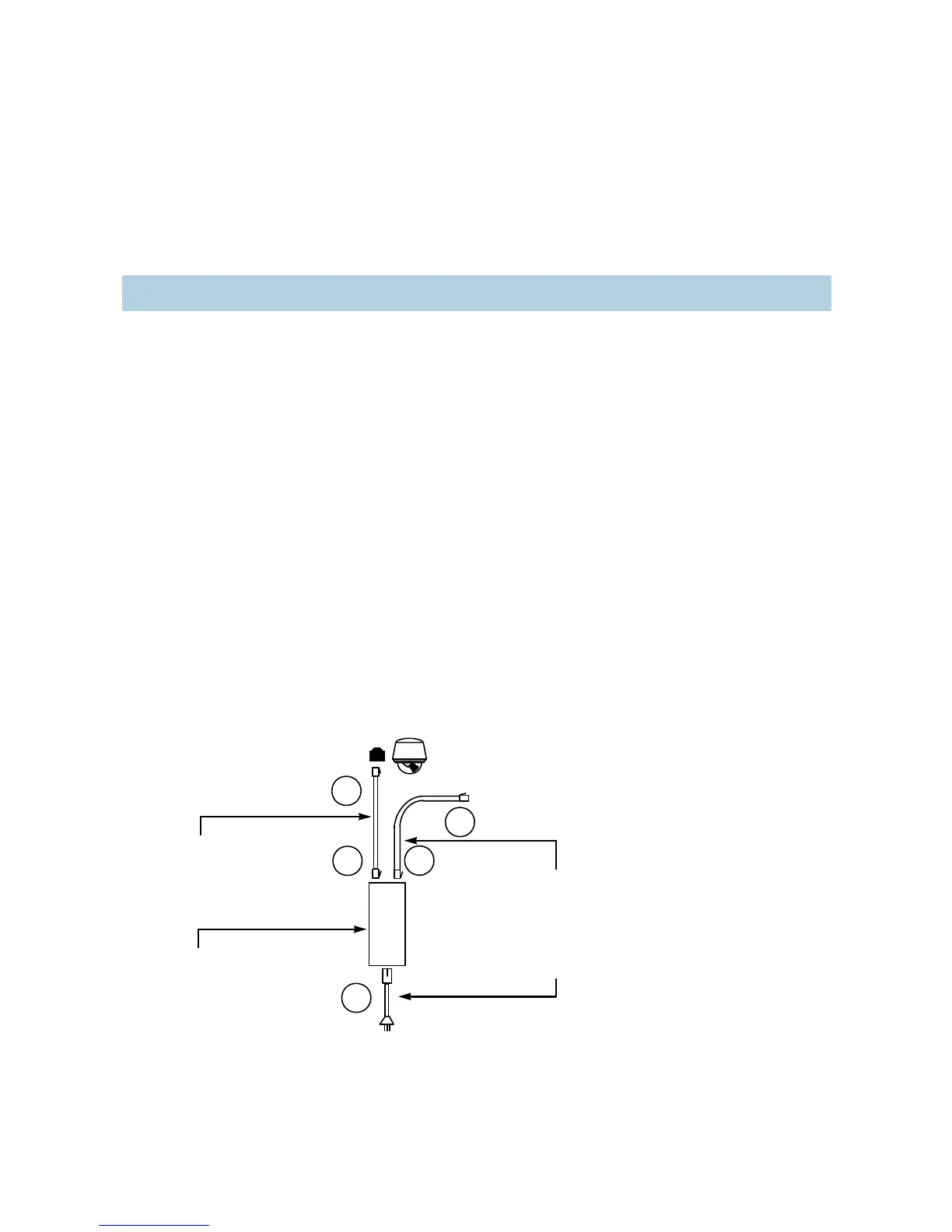

To connect the PoE kit sold by Verint:
1. Plug a straight-through Ethernet cable into the RJ-45 connector of the device.
2. Plug the other end of the cable into the DATA & PWR port of the injector.
Warning: Never use PoE and 12V DC at the same time.
1
2 3
4
J2
DATA
J1
DATA & PWR
5
RJ-45
Power cord
PoE injector
Straight-through
Ethernet cable
Ethernet cable (straight-through
or crossover)
