Item Description
1 Output
2 Input
3 Bypass Input

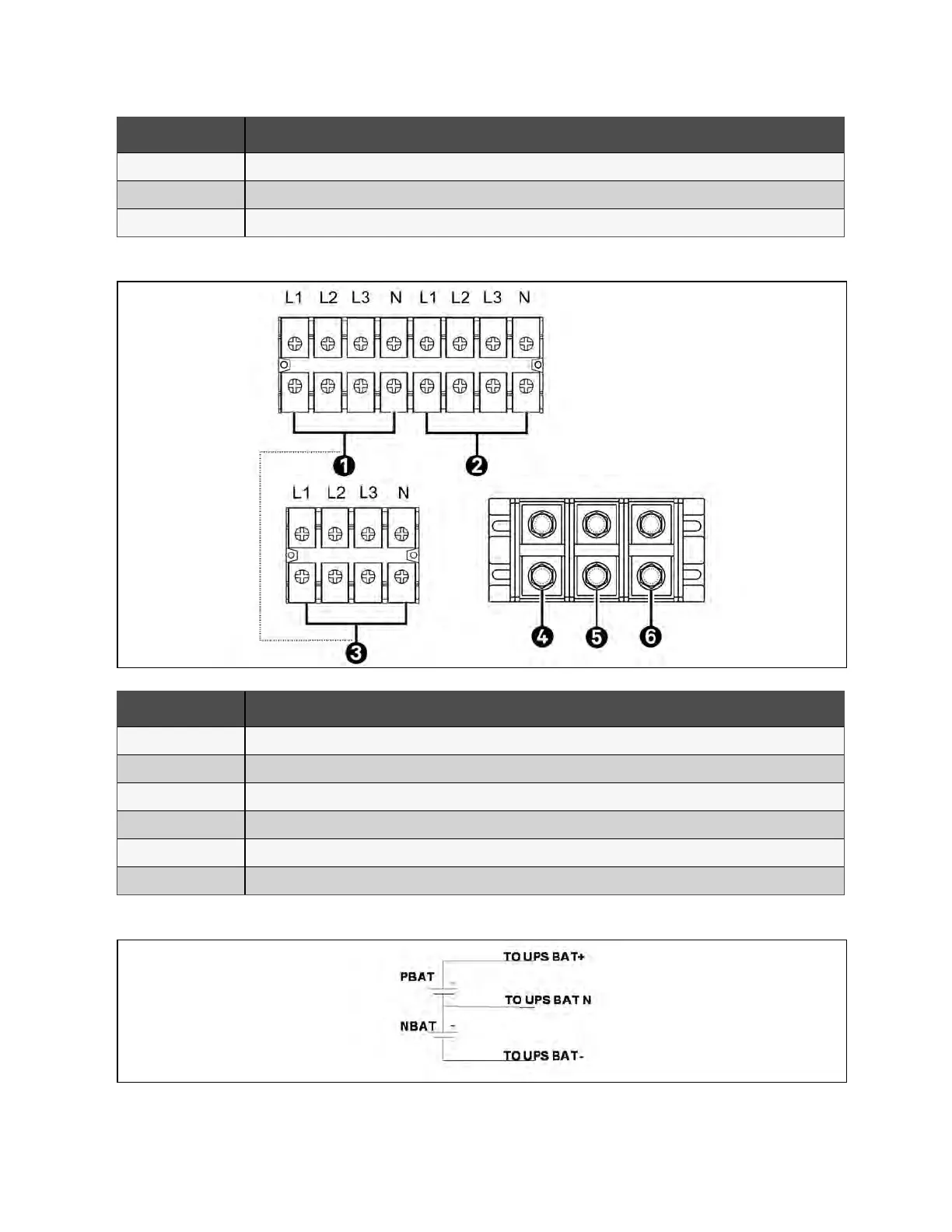

Figure 2.12 Terminal Block Wiring Diagram for HV 80kVA
Item Description
1 Input
2 Output
3 Bypass Input
4 BAT+
5 BAT-N
6 BAT-
Figure 2.13 Battery Wires Connection Schematic
NOTE: Make sure that the wires are connected securely with the terminals.
