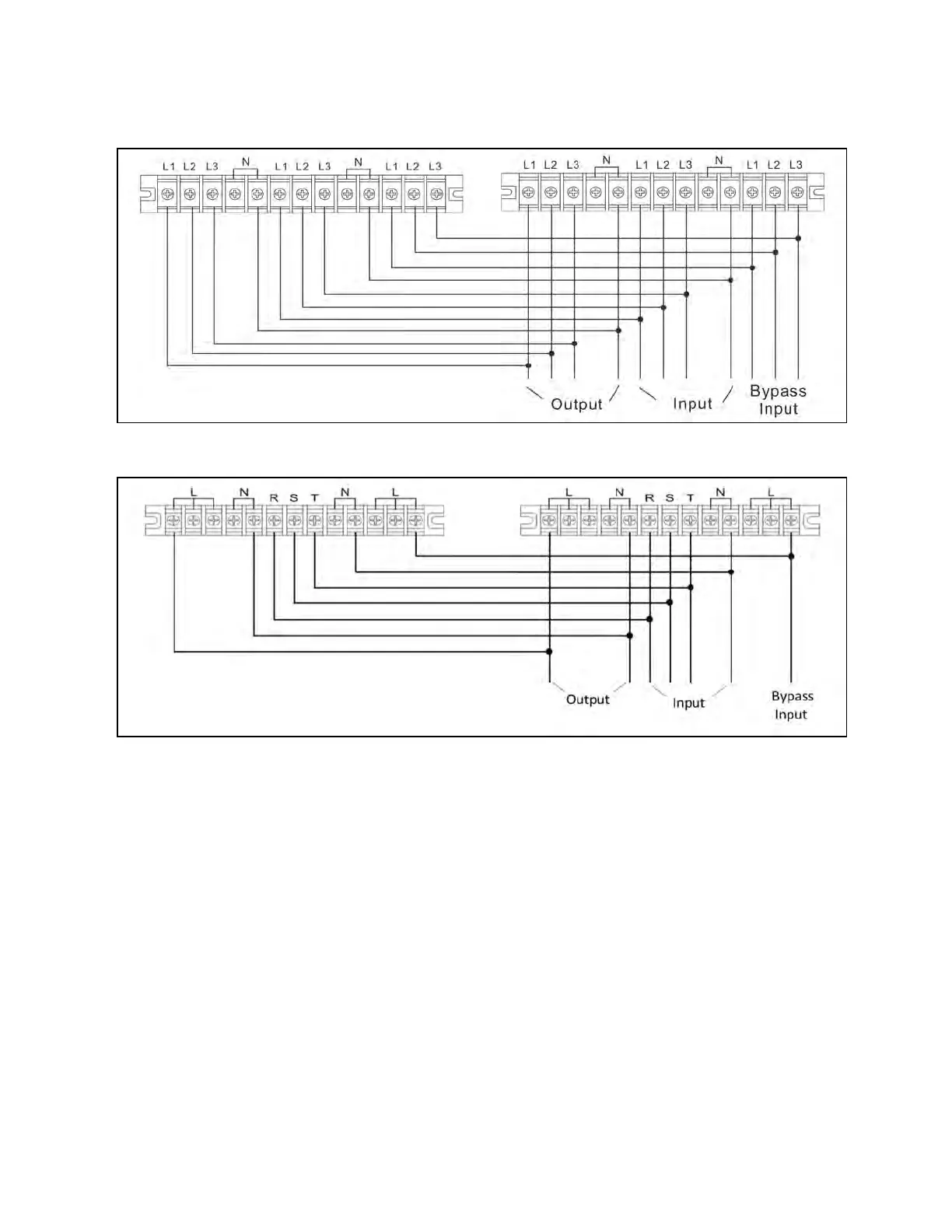

Figure 2.19 Wiring Diagram of Parallel System of 10-15-20kVA with 3-In 3-Out configuration
Figure 2.20 Wiring Diagram of Parallel System for 10-15-20kVA with 3-In 1-Out configuration
