4. OUTPUT VOL: The real time value of L1, L2 and L3 output voltage, L1L2/L2L3/L3L1 voltage and frequency.

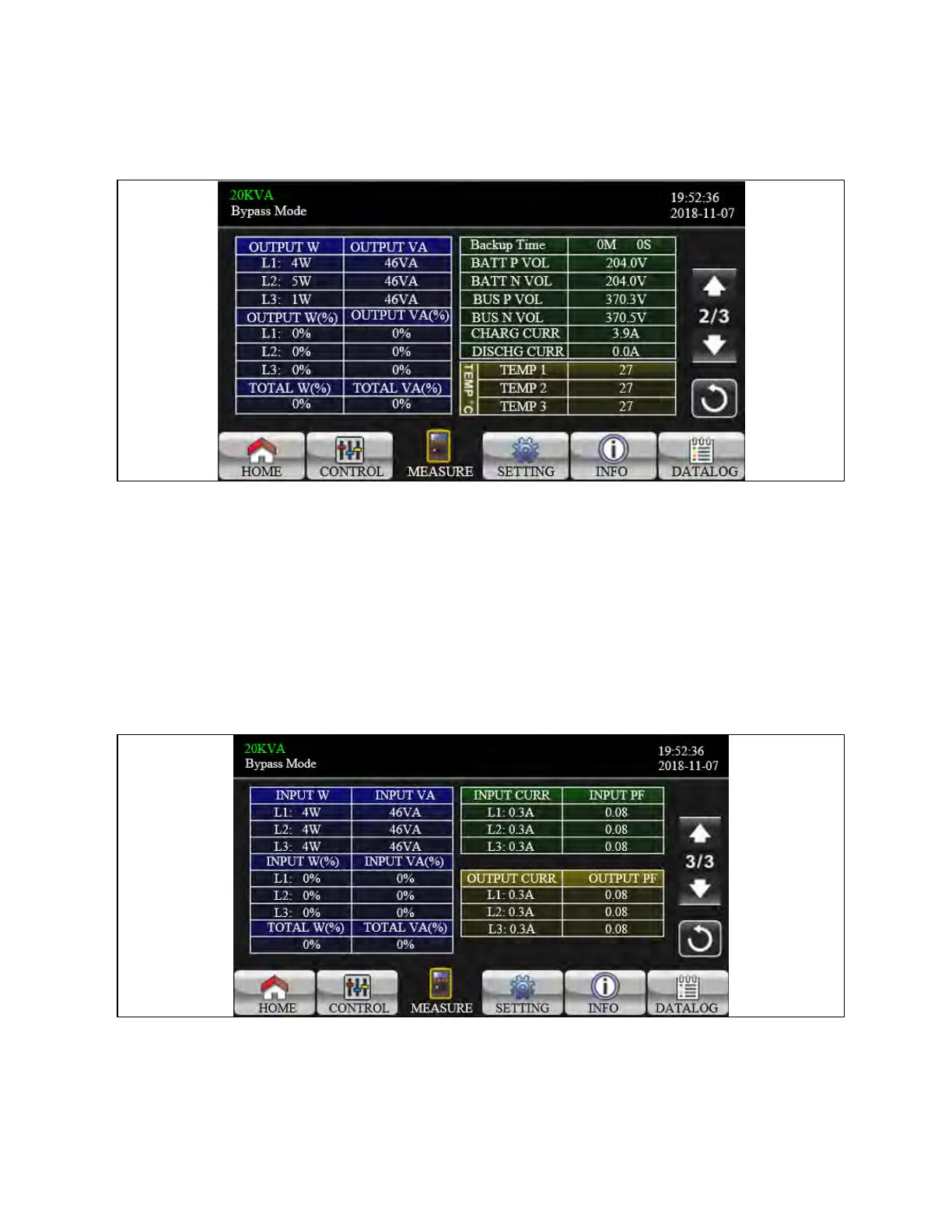

Figure 3.23 Measure Screen Page 2
1. OUTPUT W: L1, L2, and L3 output power in Watt.
2. OUTPUT VA: L1, L2, and L3 output power in VA.
3. OUTPUT W (%): L1, L2, and L3 output active power in percentage.
4. OUTPUT VA (%): L1, L2, and L3 output apparent power in percentage.
5. Total Watt and VA: Total output load in Watt and VA.
6. BATT Voltage/Bus Voltage/Charging Current/Discharging Current: The real time value of DC related
information.
7. Temperature: Temperature of L1, L2, and L3 phases.
Figure 3.24 Measure Screen Page 3
1. INPUT W: L1, L2, and L3 input power in Watt.
2. INPUT VA: L1, L2, and L3 input power in VA.
3. INPUT W (%): L1, L2, and L3 input active power in percentage.
