Parameter Information

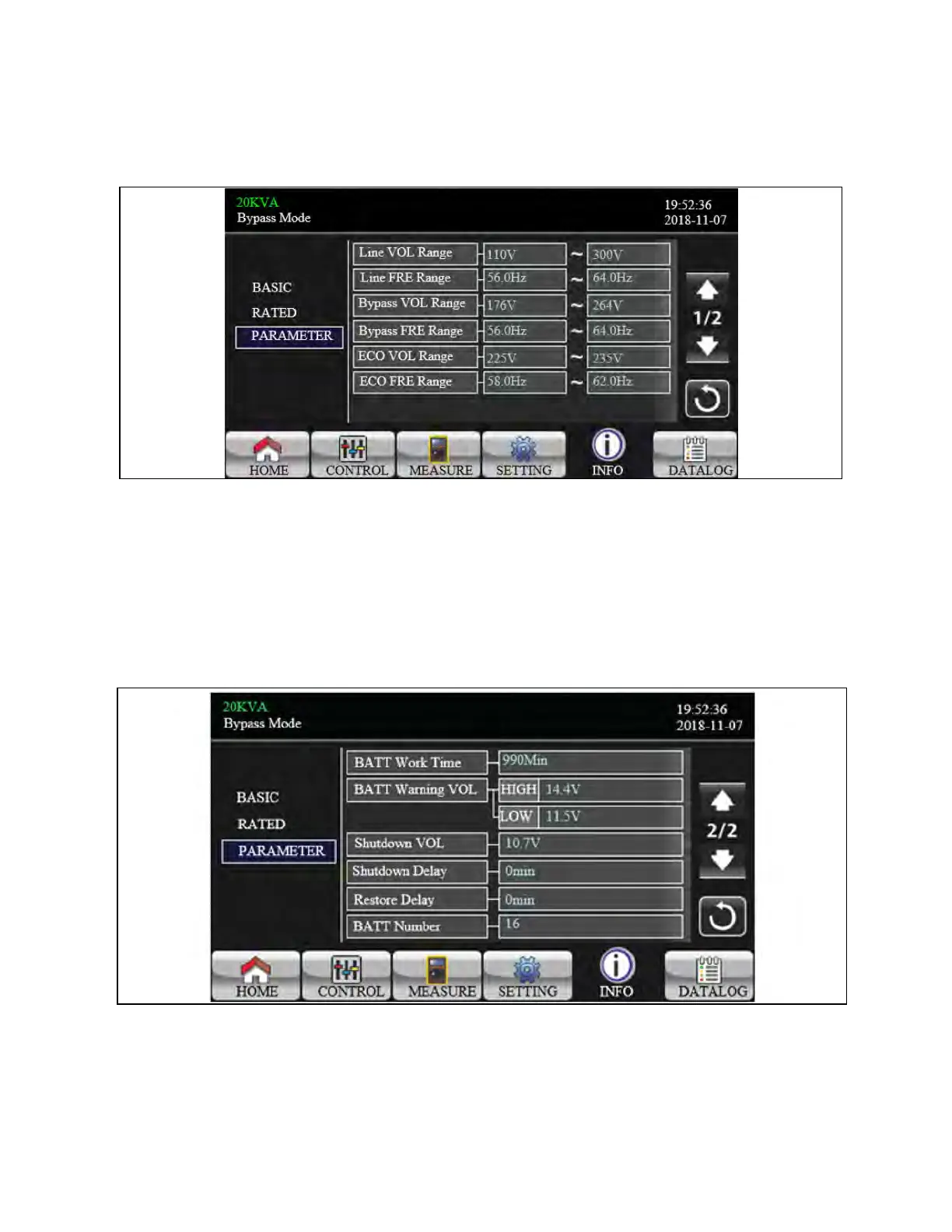

Figure 3.59 Parameter Information Screen 1
1. Line VOL Range: The acceptable line input voltage range.
2. Line FRE Range: The acceptable line input frequency range.
3. Bypass VOL Range: The acceptable input voltage range for bypass mode.
4. Bypass FRE Range: The acceptable input frequency range for bypass mode.
5. ECO VOL Range: The acceptable input voltage range for ECO mode.
6. ECO FRE Range: The acceptable input frequency range for ECO mode.
Figure 3.60 Parameters Information Screen 2
1. BATT Work Time: The maximum discharge time in battery mode.
2. BATT Warning VOL:
a. HIGH: High battery warning voltage.
b. LOW: Low battery warning voltage.
3 Operations Proprietary and Confidential ©2024 Vertiv Group Corp. 67
Vertiv™ Liebert® MTP Online UPS User Manual 20-40-80kVA
