REV : 2
REV DATE : 1/17
DPN003178
Page :1 /1
DOWNFLOW AIR COOLED DA125, DA150 & DA165
Form No.: DPN001040_REV4

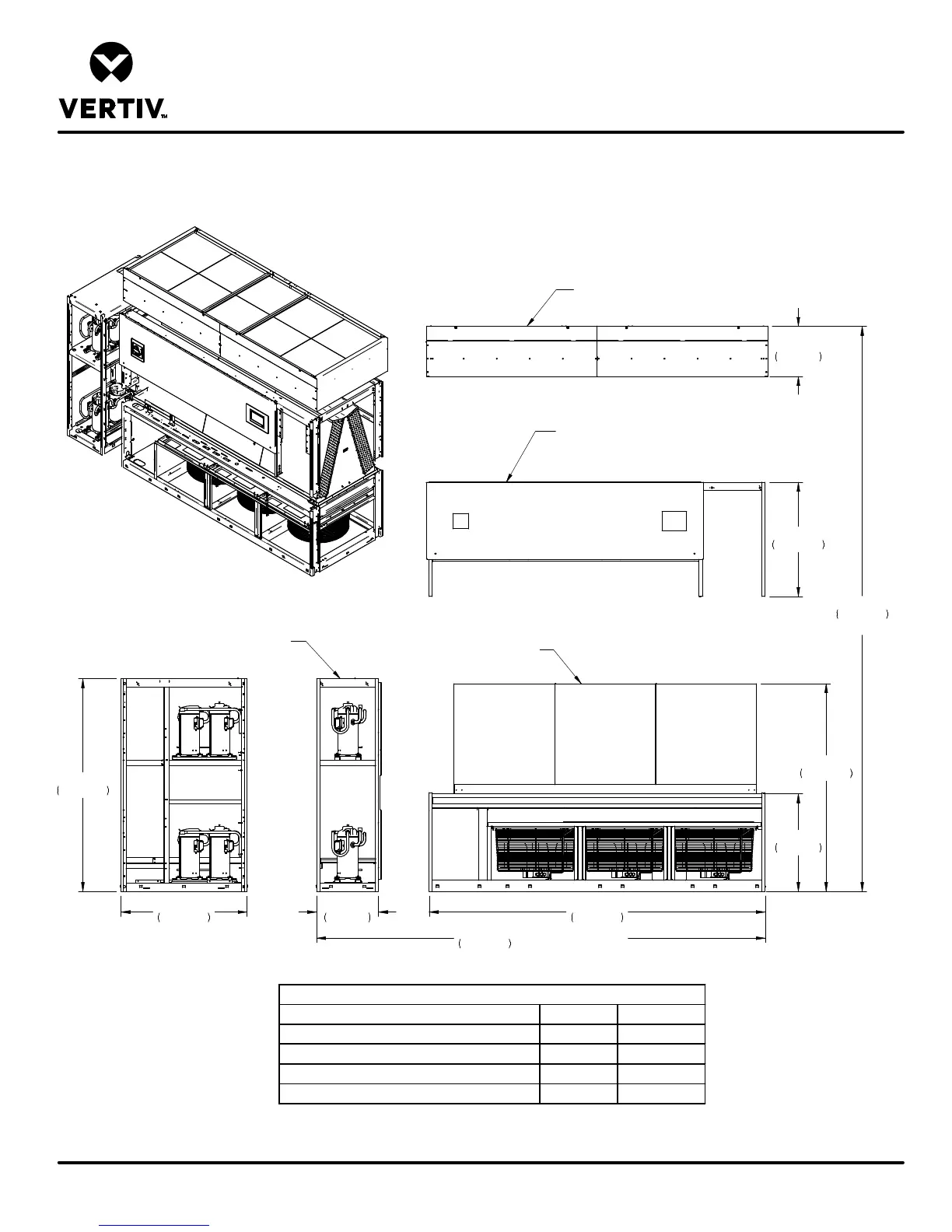

DISASSEMBLY DIMENSIONAL DATA
LIEBERT DSE
NOTE: Drawing views are simplified with panels removed to show over all dimensions.
COMPRESSOR ASSEMBLY
See disassembly and handling instructions in installation manual.
BLOWER & COIL ASSEMBLY
ELECTRIC BOX ASSEMBLY
35"
889mm
74 3/16"
1884mm
120"
3048mm
18"
457mm
40 11/16"
1034mm
22"
558mm
45"
1143mm
76"
1930mm
FILTER ASSEMBLY
94"
2388mm
ASSEMBLED HEIGHT
142"
3607mm
ASSEMBLED LENGTH
DA125 DA150/DA165
COMPRESSOR ASSEMBLY 630 (286) 739 (335)
ELECTRIC BOX ASSEMBLY 417 (189) 417 (189)
BLOWER & COIL ASSEMBLY 2218 (1006) 2218 (1006)
FILTER ASSEMBLY 200 (91) 200 (91)
DRY WEIGHT lb(kg) APPROXIMATE (Includes Panels)
