Vertiv Liebert DSE - Page 106

REV : 6
REV DATE : 1/17
DPN003177
Page :1 /1
DOWNFLOW AIR COOLED DA125, DA150 & DA165 MODELS
Form No.: DPN001040_REV4

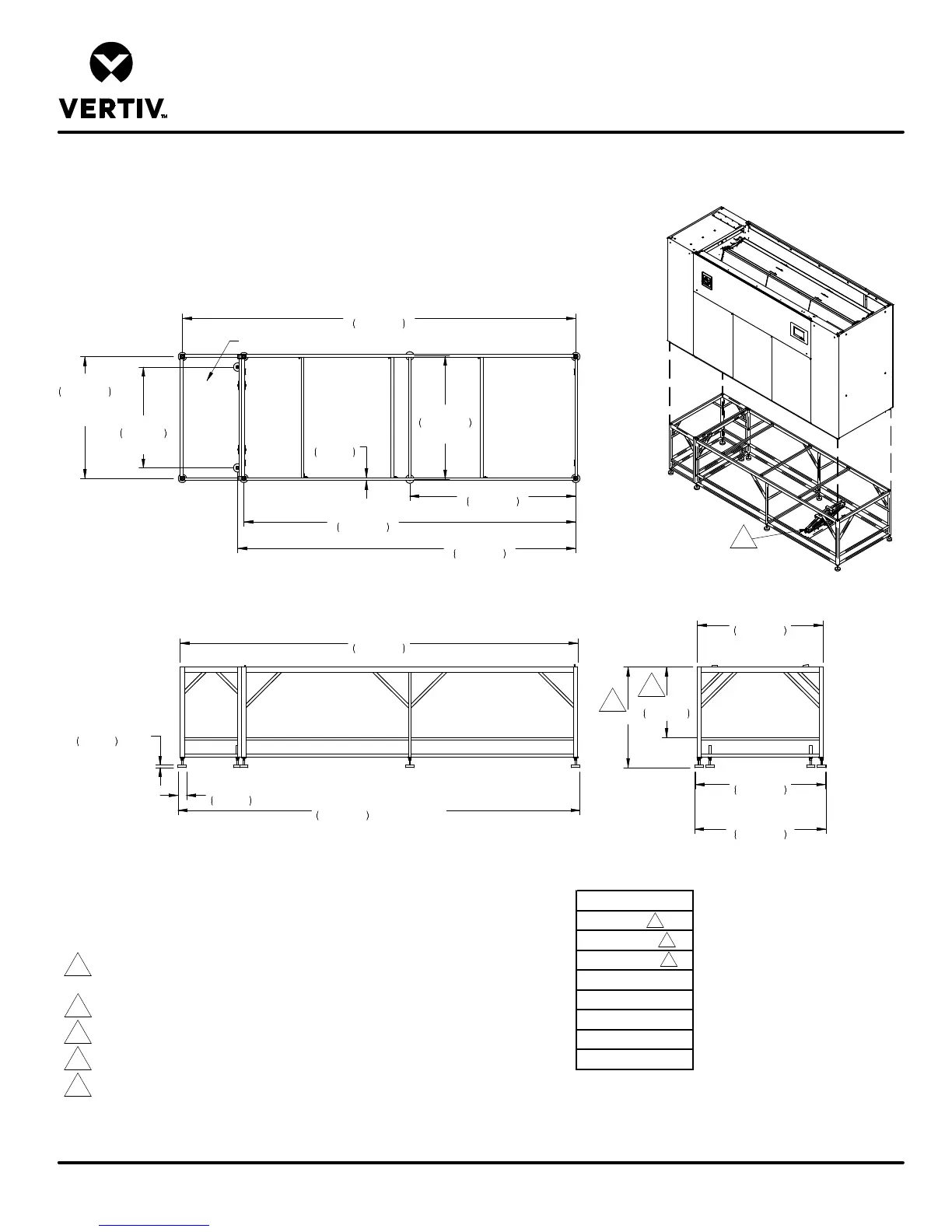

FLOORSTAND DIMENSIONAL DATA
LIEBERT DSE
Notes:
1. This floorstand should be used when EC fans are intended to be lowered under
a raised floor. 24-48" floorstands allow fan to be lowered under the raised floor.
2. All paneled sides of unit overhang floorstand 1” (25mm).
3. The floorstand used with EC units is not symmetrical and proper
orientation required for lowering the blowers. Unless the floor
stand is installed in the correct position, the blowers will not lower into
the floorstand.
4. Jack and jack support are shipped loose and are intended to be placed
into position under each fan and utilized to lower or raise that fan
as needed individually.
5. Leveling feet are provided with u 1-1/2" (38mm)
adjustment from nominal height "A".
6. Applies to 36", 42", & 48" Floorstands.
7. 7” Floorstands can only be used with downflow units with front or rear discharge.
8. Fans may be lowered into 18" floor, however this application does not allow for the use of a factory provided floor jack.
Other methods of raising/lowering fans must be employed for raised floors less than 24".
Height in. (mm)
A
7 (178)
18 (457)
24 (610)
30 (762)
36 (914)
42 (1067)
48 (1219)
45"
1143mm
47"
1194mm
Overall Depth
7/8"
23mm
TYP.
3"
76mm
TYP.
43 1/2"
1105mm
Center of Feet
Typ. (3) Places
120 3/4"
3067mm
Center of Feet
118 1/2"
3010mm
Center of Feet
59 1/4"
1505mm
Center of Feet
5
5
4
36"
914mm
Center of Feet
Piping Access Area
44"
1118mm
Center of Feet
140 1/2"
3569mm
Center of Feet
1"
25mm
Typ.
142"
3607mm
143 1/2"
3645mm
Overall Length
46 1/2"
1181mm
At each end
25 1/4"
641mm
6
A
7
8
