DOWNFLOW DA050 AIR COOLED
Form No.: DPN001040_REV4

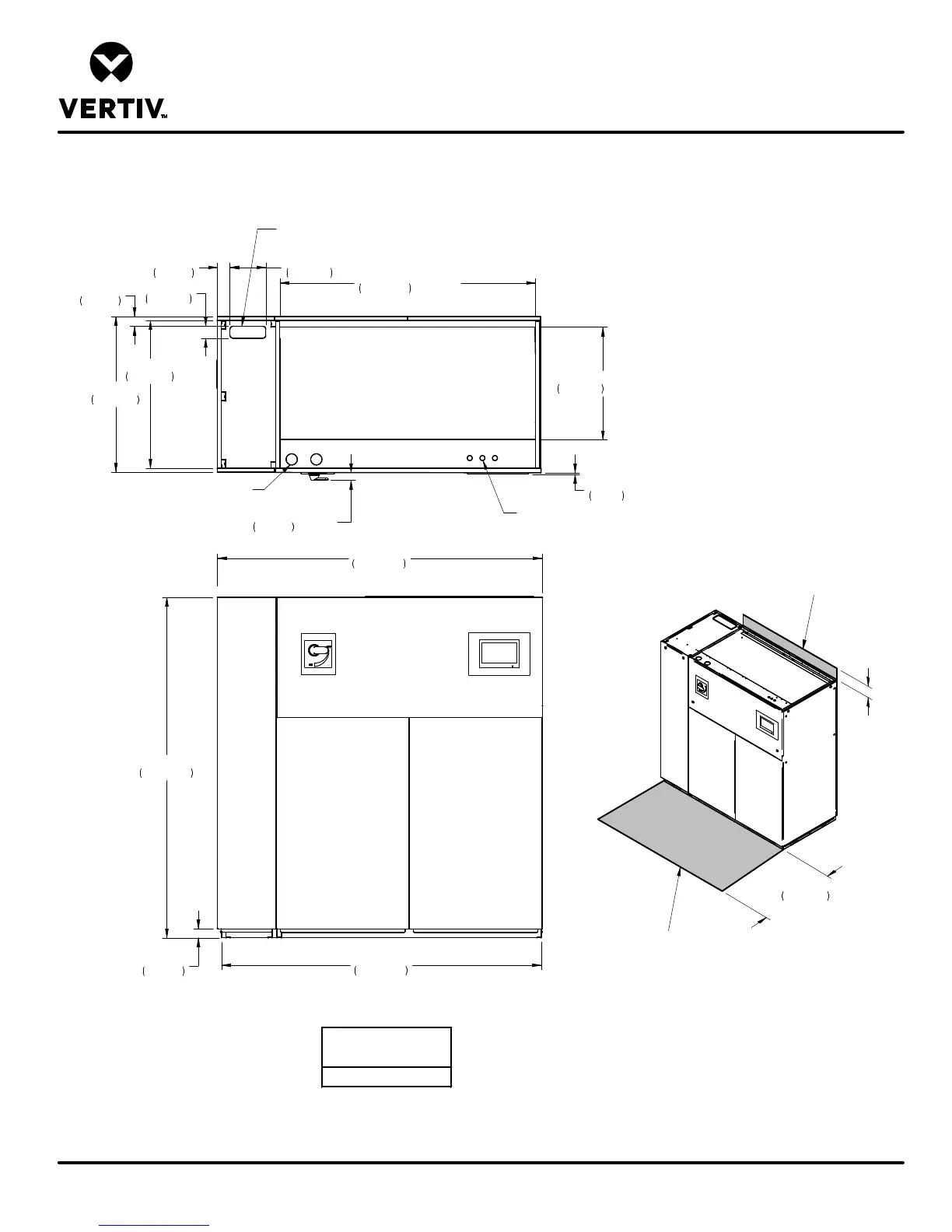

CABINET DIMENSIONAL DATA
LIEBERT DSE
Note:
1. Filters are accessible
through top of unit only.
2. Downflow electrical
connections can be made
from top or bottom of unit.
AIR INLET OPENING
Shaded area indicates a
recommended minimum
clearance be provided for
component access.
FRONT VIEW
TOP VIEW
77"
1956mm
76"
1930mm
2"
51mm
76"
1930mm
35"
889mm
Secondary Entrance
High Volt Connection(s)
Secondary Refrigerant
Piping Entrance
Secondary Entrance
Low Volt Connections
34"
864mm
33"
838mm
Minimum required
for filter replacement
5"
(127mm)
1590 (721)
APPROXIMATE
DRY WEIGHT lb (kg)
56 7/8"
1445mm
Opening
24 3/8"
619mm
Opening
5/16"
8mm
Bezel
1 3/4"
44mm
Handle
14"
356mm
2 3/8"
60mm
1 7/8"
48mm
4"
102mm
