REV : 2
REV DATE : 1/17
DPN003532
Page :1 /1
DOWNFLOW DA050
Form No.: DPN001040_REV4

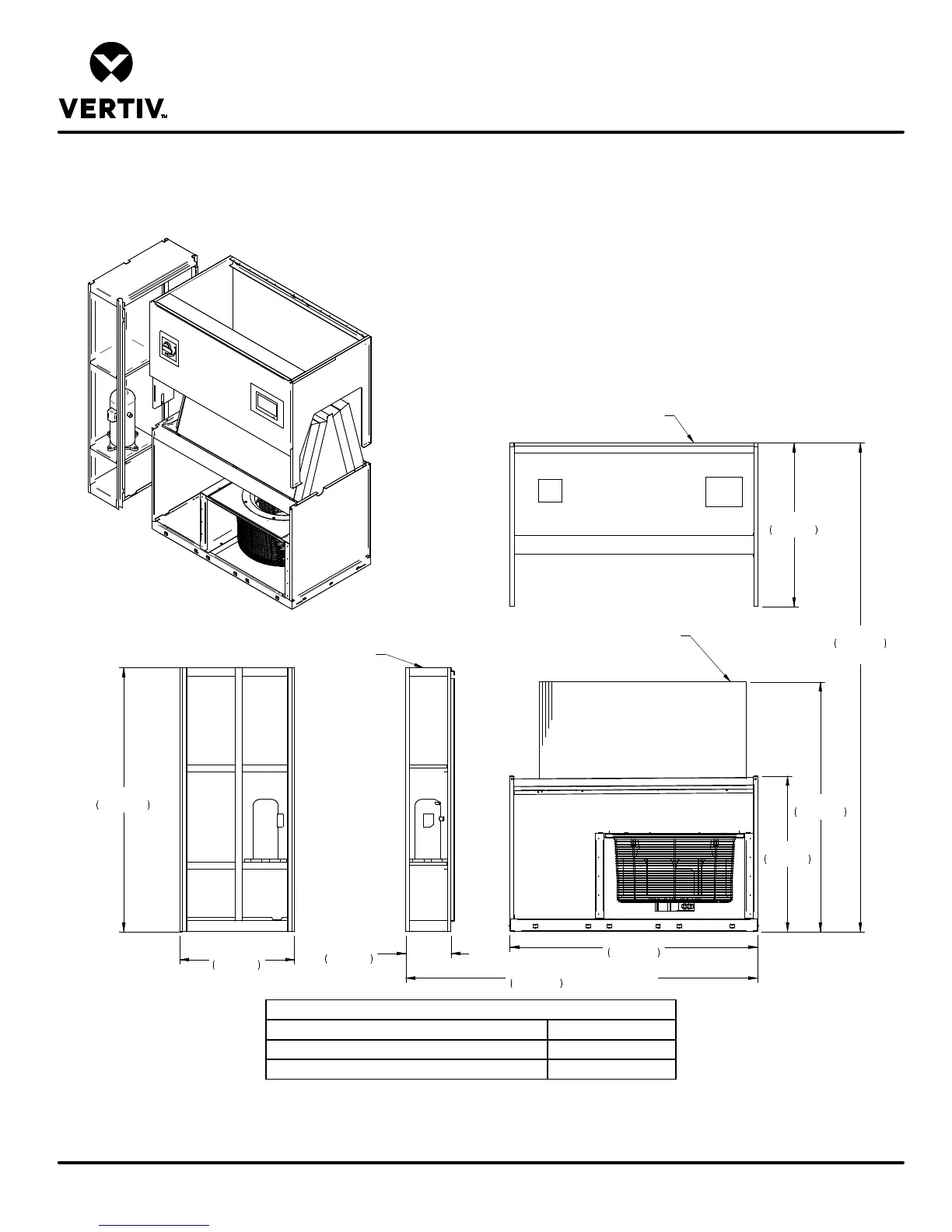

DISASSEMBLY DIMENSIONAL DATA
LIEBERT DSE
39"
991mm
COMPRESSOR ASSEMBLY
FILTER & ELECTRIC BOX ASSEMBLY
BLOWER & COIL ASSEMBLY
COMPRESSOR ASSEMBLY 460 (209)
FILTER & ELECTRIC BOX ASSEMBLY 210 (96)
BLOWER & COIL ASSEMBLY 920 (417)
APPROXIMATE DRY WEIGHT lb (kg) (Includes Panels)
17"
432mm
33"
838mm
76"
1930mm
59"
1499mm
76"
1930mm
Assembled Length
37"
940mm
59 7/16"
1509mm
76"
1930mm
Assembled Height
Notes:
1. Drawing views are simplified with panels removed to show overall dimensions.
2. See disassembly and handling instructions in installation manual.
