REV : 0
REV DATE : 2/17
DPN004073
Page :1 /1
DOWNFLOW AIR COOLED DA080-DA085
W/ DIGITAL SCROLL COMPRESSORS
Form No.: DPN001040_REV4

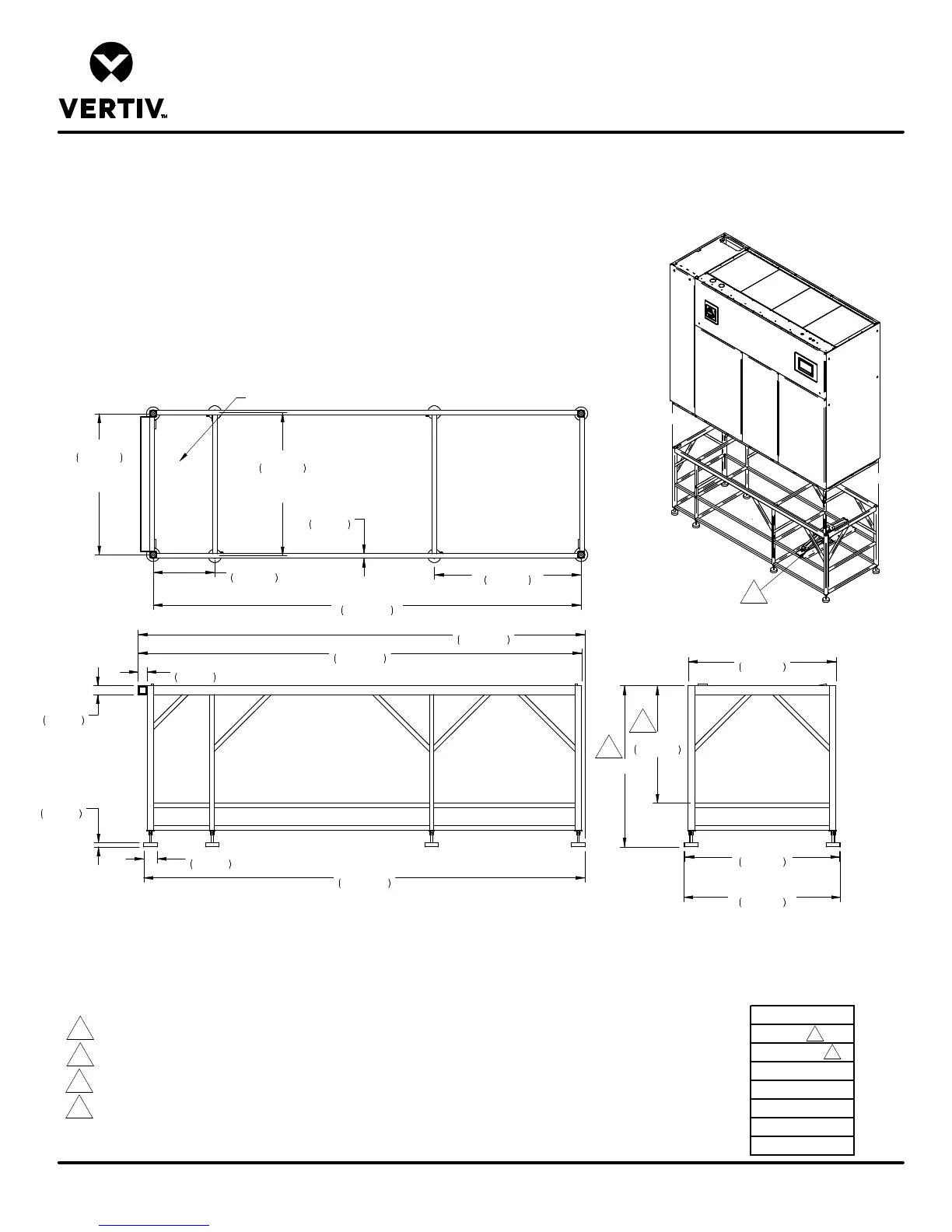

FLOORSTAND DIMENSIONAL DATA
LIEBERT DSE
Notes:
1. This floorstand should be used when EC fans are intended to be lowered under
a raised floor. 24-48" floorstands allow fan to be lowered under raised floor.
2. Right side of paneled unit is flush with right side of floorstand. All other paneled sides
overhang floorstand 1" (25mm).
3. The floorstand used with EC units is not symmetrical and its orientation to the
Liebert DSE is critical for lowering the EC fans. Unless the floor stand is installed in
the correct position, the blowers will not lower into the floorstand.
4. Jack and jack support are shipped loose and are intended to be placed into position
under each fan and utilized to lower or raise that fan as needed.
5. Leveling feet are provided with
u
1-1/2” (38mm) adjustment from nominal height “F”.
6. Applies to 36", 42" & 48" Floorstand.
7. Fans may be lowered into 18" floor, however this application does not allow for the use of a factory provided floor jack.
Other methods of raising/lowering fans must be employed for raised floors less than 24".
95 1/2"
2426mm
Center of Feet
31 1/2"
800mm
Center of Feet
at each end
33"
838mm
35"
889mm
Overall Depth
7/8"
23mm
Typ.
3"
76mm
Typ.
32 3/4"
832mm
Center of Feet
F
19 1/4"
489mm
5
5
32"
813mm
Center of Feet
between each end
1"
25mm
Typ.
13 3/4"
349mm
Center of Feet
4
2"
51mm
6
34 1/2"
876mm
At each end
2"
51mm
Piping access area
98 1/2"
2502mm
99"
2515mm
99 3/4"
2534mm
7
