DOWNFLOW DA080-DA085 MODELS
Form No.: DPN001040_REV4

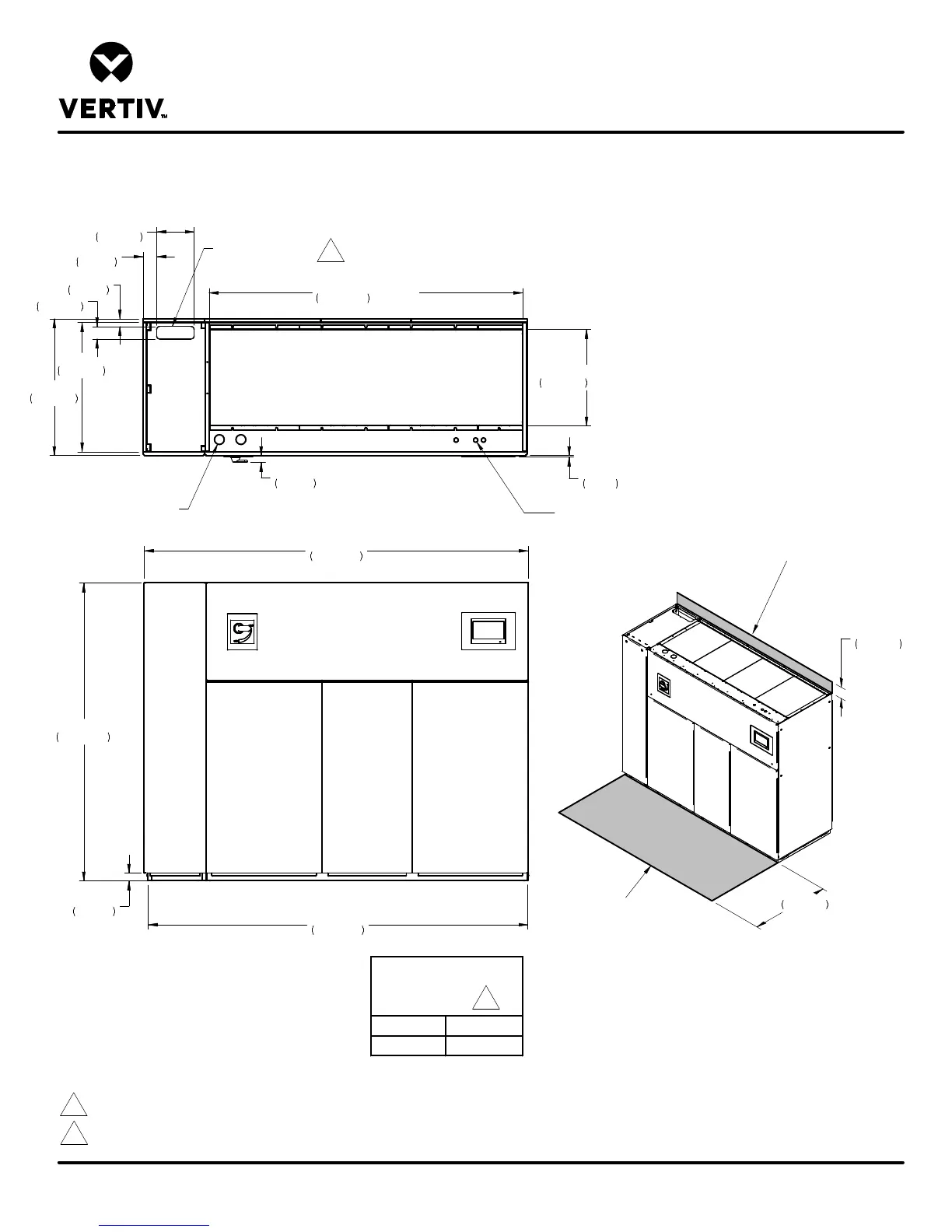

CABINET DIMENSIONAL DATA
LIEBERT DSE
Shaded area indicates a
recommended minimum
clearance be provided for
component access.
FRONT VIEW
76"
1930mm
2"
51mm
Minimum required
for filter replacement
34"
864mm
5"
127mm
AIR INLET OPENING
Secondary Entrance
High Volt Connection(s)
Secondary Refrigerant
Piping Entrance
Secondary Entrance
Low Volt Connections
TOP VIEW
80"
2032mm
Opening
34 3/4"
883mm
24 3/8"
619mm
Opening
33"
838mm
5/16"
8mm
Bezel
1 3/4"
44mm
Handle
DA080 2200 (998)
DA085 2250 (1021)
Approximate Dry Weight
lb. (kg)
100"
2540mm
99"
2515mm
Notes:
1. Filters are accessible through top of unit only.
2. Downflow electrical connections can be made from top or bottom of unit.
3. Secondary Refrigerant piping entrance. Not available with 575V.
4. Add 120lbs. (54kg) for 575V transformer.
3
4
14"
356mm
2 3/8"
60mm
4"
102mm
1 7/8"
48mm
