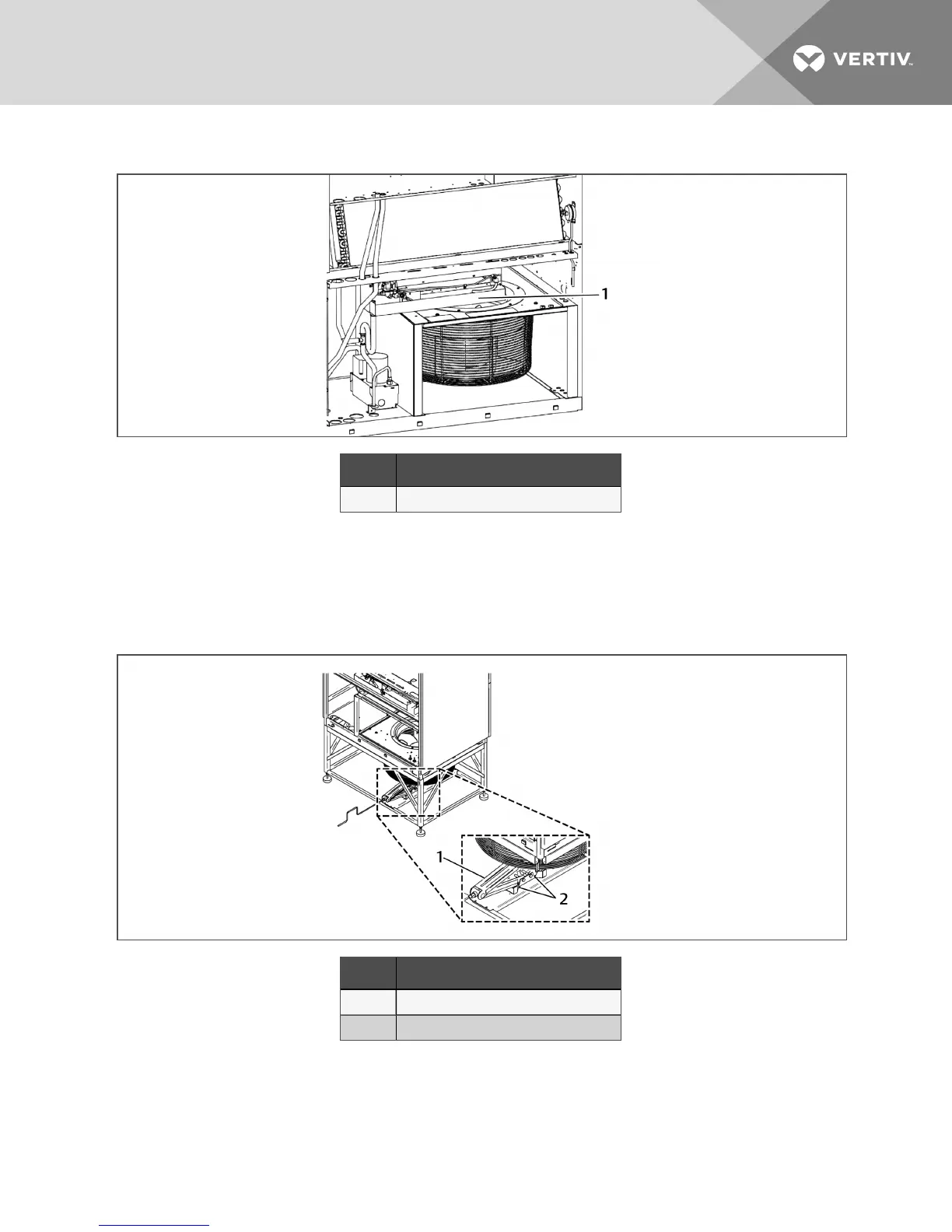

Figure 10.3 Humidifier pan removal
Item Description
1 Humidifier pan
3. If the fan module is raised and in the unit, proceed to step 6.
– or –
If the fan module is lowered into the floor stand, refer to Figure 10.4 below and before
removing any hardware, center the factory-supplied jack between the tabs on the jack
support.
Figure 10.4 Jack placement to support EC fan module
Item Description
1 Position jack to support fan
2 Tabs
10 Maintenance 61
