Vertiv | Liebert® GXT5™ | Installer/User Guide 45
NOTE: When an alarm is indicated, an alarm message is logged. Table 4-4 on page 49, describes the alarm
messages you may see. When a fault is indicated, front-panel display list the fault, which are described in
Table 6-2 on page 61.
4.2. LCD Menu and Screens
The menu-driven LCD user interface lets you browse the UPS status, view operating parameters, customize
settings, control operation, and view alarm/event history. Use the function keys to navigate through the menu,
and view statuses or select settings in the screens.
4.2.1. Start-up and Flow Screens
At start-up, the UPS executes a system test and displays the Vertiv logo screen for about 10 seconds, shown
in Figure 4-1 on page 43. After the test completes, an overview screen shows status information, the active
(green) power path, and the non-working power path (gray).

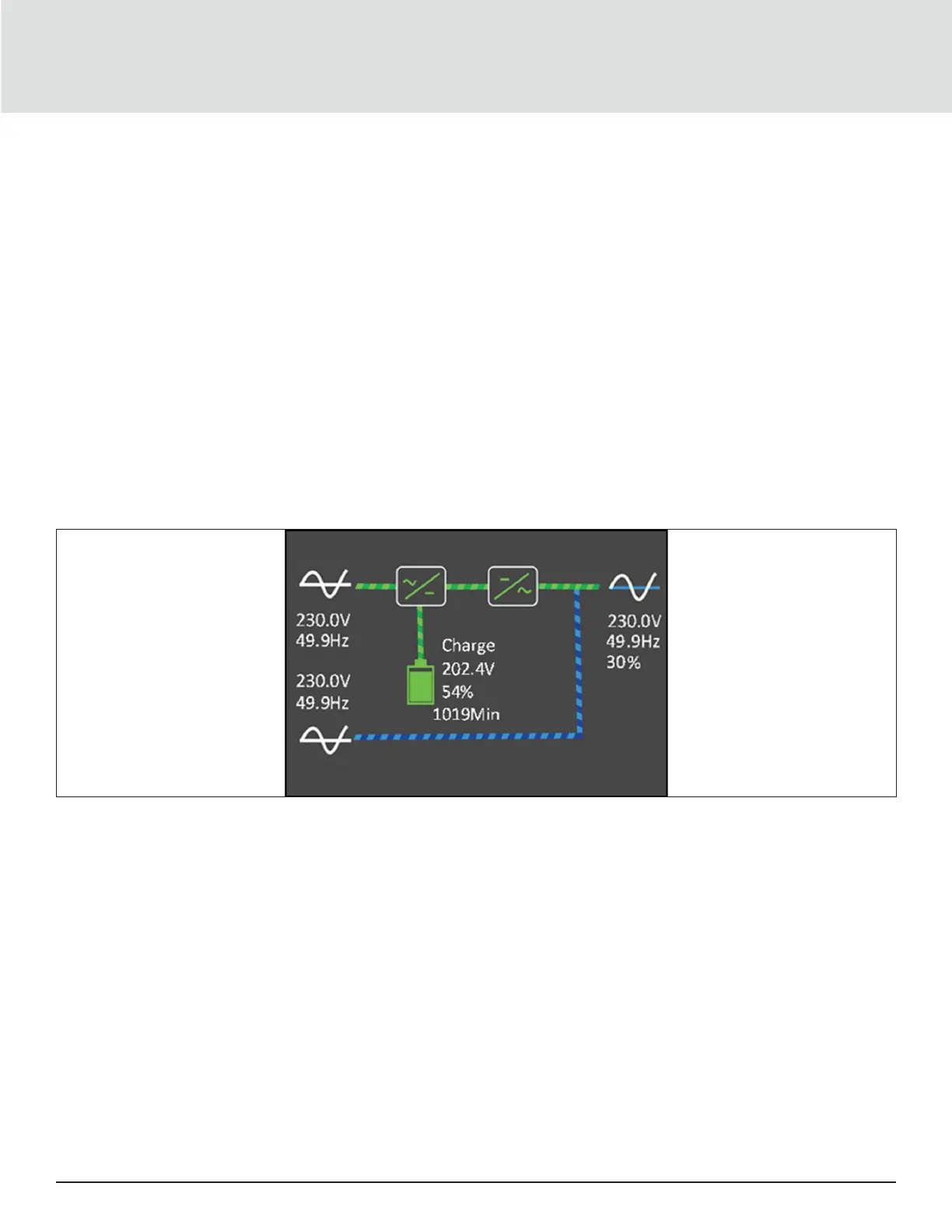

Figure 4-3 UPS Flow Screen
