2.9.4 Remote Commands
During particular operating conditions (such as the generator supply), there are two remote
commands available: each command is capable to exclude one power bus reference overriding
the Liebert MBSM controls and forcing the related UPS system to phase lock the Liebert MBSM
frequency reference. If both the power buses are excluded by the remote commands, the UPS
systems will phase lock the frequency reference self-generated by the Liebert MBSM internal
quartz oscillator. Figure 10 shows an example of Bus A remote control activation.

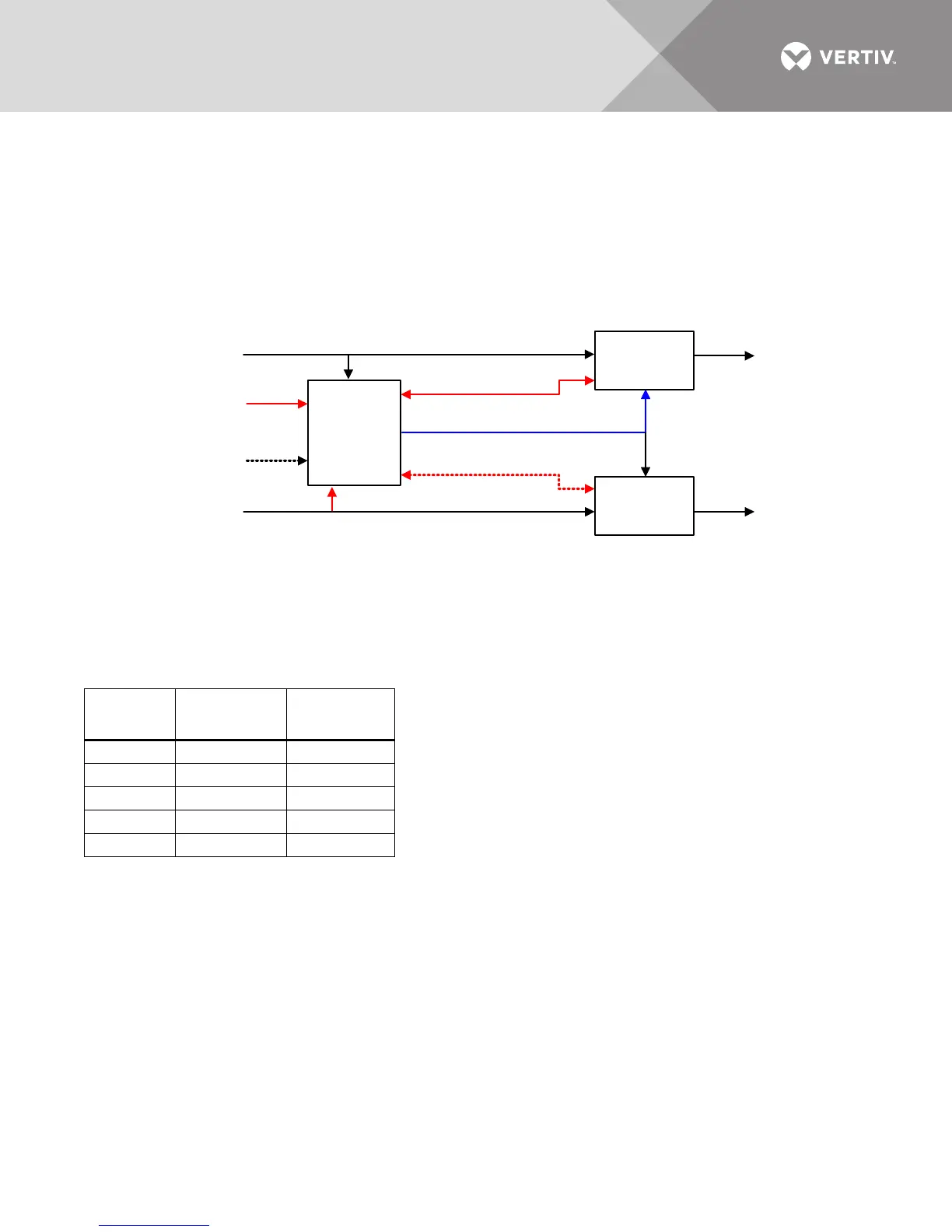

Figure 10 Remote override to synchronize to Bus B for dual-bus system
2.10 Application Limits
The Liebert MBSM with phase control (10B14545G1) is applicable to systems with up to six UPS
modules.
Table 1 Liebert MBSM application limits—Six UPS modules
Combinati
on
Bus A
Maximum
UPS Number
Bus B
Maximum
UPS Number
A5 1
B4 2
C3 3
D2 4
E1 5
UPS
System A
UPS
System B
MSBM
Power Bus A
Power Bus B
Secure
Bus B
Secure
Bus A
System A CNTRL
System B CNTRL
Bus B
Remote
CNTRL
Bus A
Remote
CNTRL
Frequency Reference
