Vertiv Liebert MBSM - Special Solution, if Required; Selecting the Priority; Figure 12 Special Application-Liebert MBSM Connected to 11 UPS Modules; Table 2 Liebert MBSM Application Limits-11 UPS Modules

Vertiv
™
| Liebert
®
MBSM
™
User Manual | 19
2.10.1 Special Solution, if Required
A special version of the Liebert MBSM (10B14545G2) with phase control is available for
applications with up to 11 UPS modules.

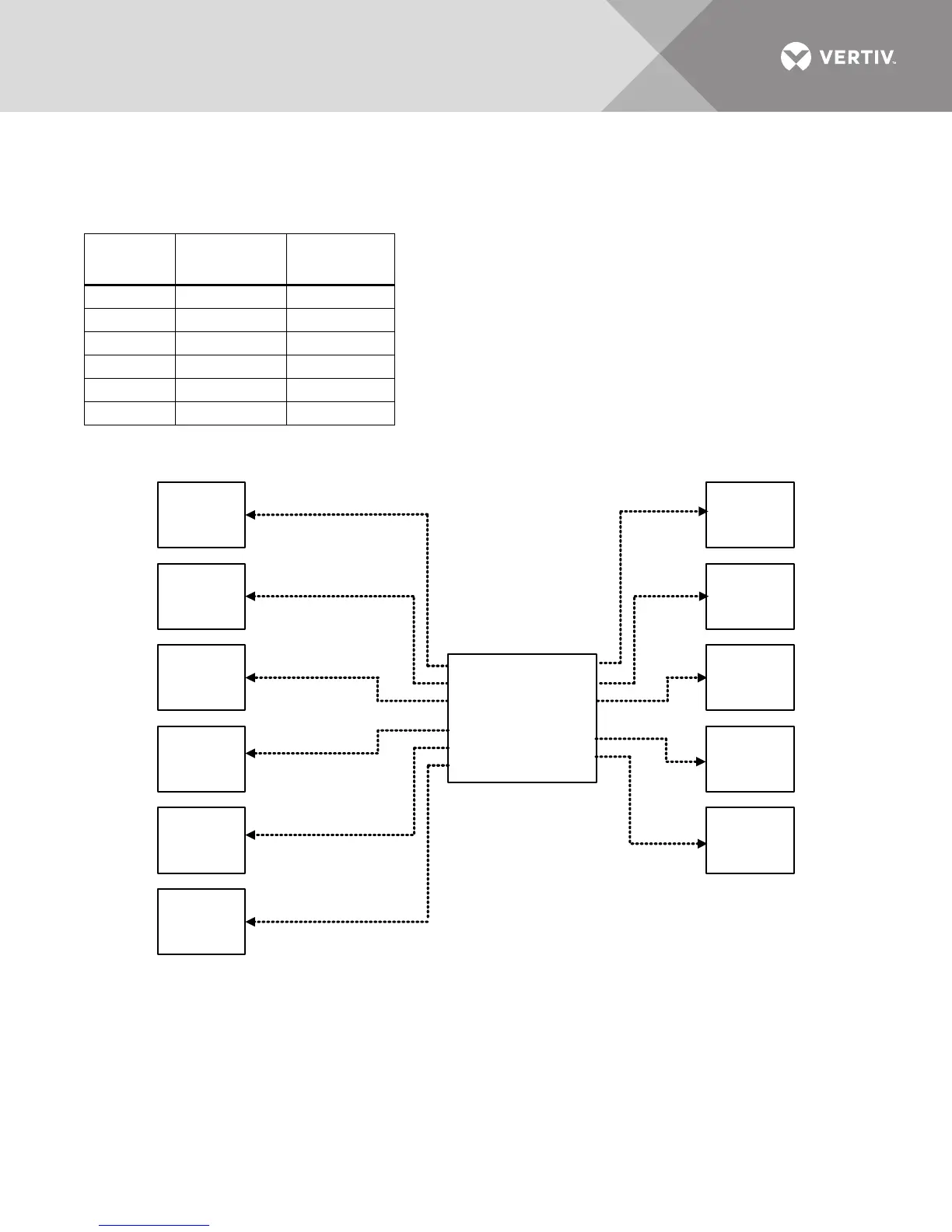

Figure 12 Special application—Liebert MBSM connected to 11 UPS modules
2.11 Selecting the Priority
Use the selector switch on the front panel to set the operating mode:
• AUTOMATIC (AUTOM.)—Liebert MBSM detects the reference bus automatically, without assigning a
priority; the first bus to be detected is selected as the reference.
• PRIORITY BUS A (PRIORITY A)—If Bus A is present it is selected as priority source. If Bus A is not
present, the Liebert MBSM selects Bus B, if present.
• PRIORITY BUS B (PRIORITY B)—If Bus B is present it is selected as priority source. If Bus B is not
present, the Liebert MBSM selects Bus A, if present.
Table 2 Liebert MBSM application limits—11 UPS modules
Combinati
on
Bus A
Maximum
UPS Number
Bus B
Maximum
UPS Number
A8 3
B7 4
C6 5
D5 6
E4 7
F3 8
Liebert MBSM
10B14545G2
UPS #1
UPS #2
UPS #3
UPS #4
UPS #5
UPS #6
UPS #7
UPS #8
UPS #9
UPS #10
UPS #11
Note that the maximum number
of UPS’s in modular parallel is
