Vertiv Netsure User Manual

NetSure
™
Control Unit (NCU)
User Manual, UM1M830BNA
Spec. No: 1M830BNA, 1M830DNA Code: UM1M830BNA
Model No: M830B, M830D Revision M, May 12, 2017
[107]

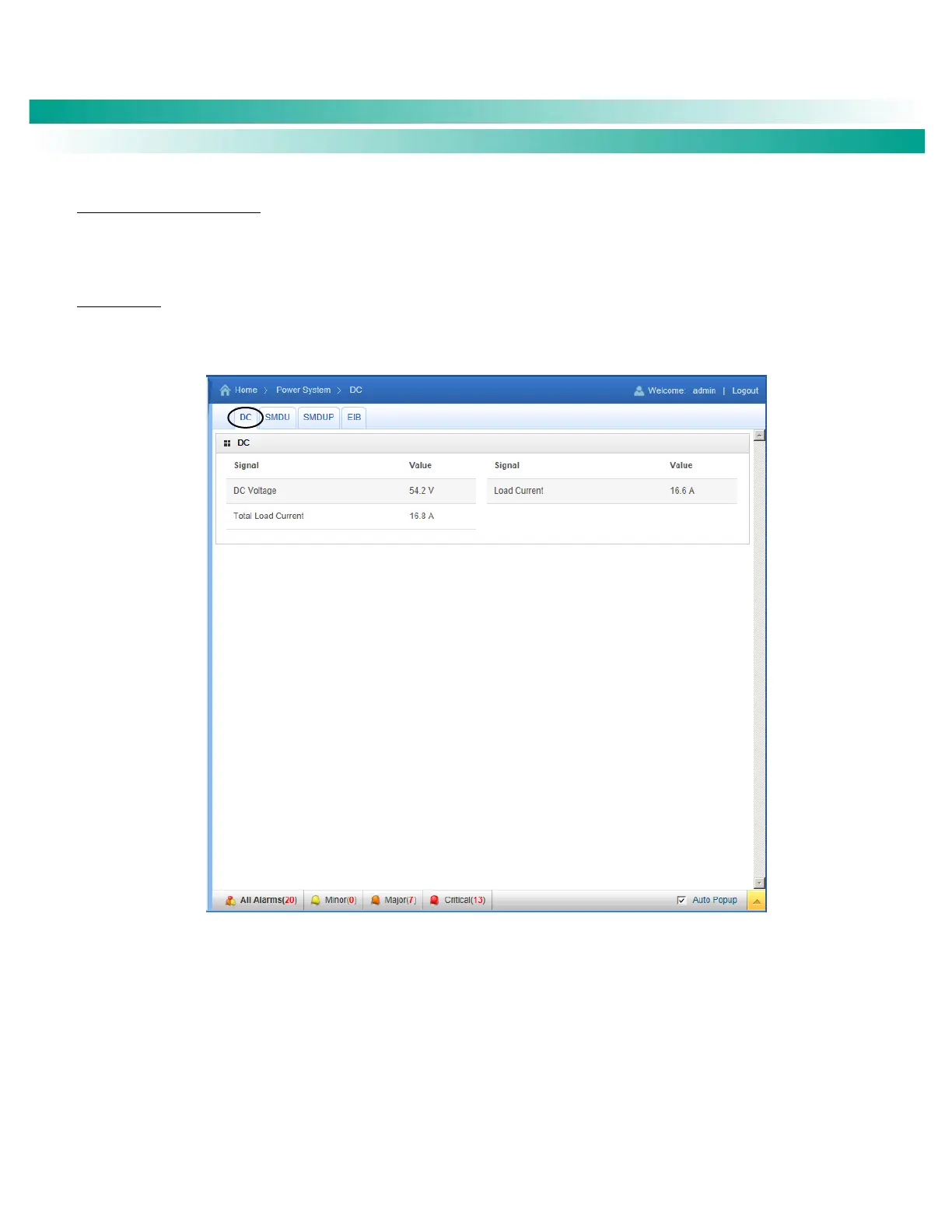

DC Device Group Status Page
Clicking on the DC icon on the power system status block diagram opens up the status page for the DC Device Group. The DC Device
Group status page contains multiple tabs (depending on the DC equipment installed in your power system). This includes DC, SMDU,
SMDUP, and EIB. The DC status page tab is shown next for an example.
DC Status Tab
This tab displays status values such as "DC Voltage" and “Total Load Current”.
Figure 41. DC Device Group Status Tab
