Battery Device Group Status Page
Clicking on the battery icon on the power system status block diagram opens up the status page for the Battery Device Group. The
Battery Device Group status page displays battery status values such as "Battery Management State" and "Battery Temp". The actual
display of the Battery Device Group status page is dependent on the NCU configuration and if SM-DU or EIB shunts are programmed as
battery shunts (see Figure 42, Figure 43, Figure 44, or Figure 45).

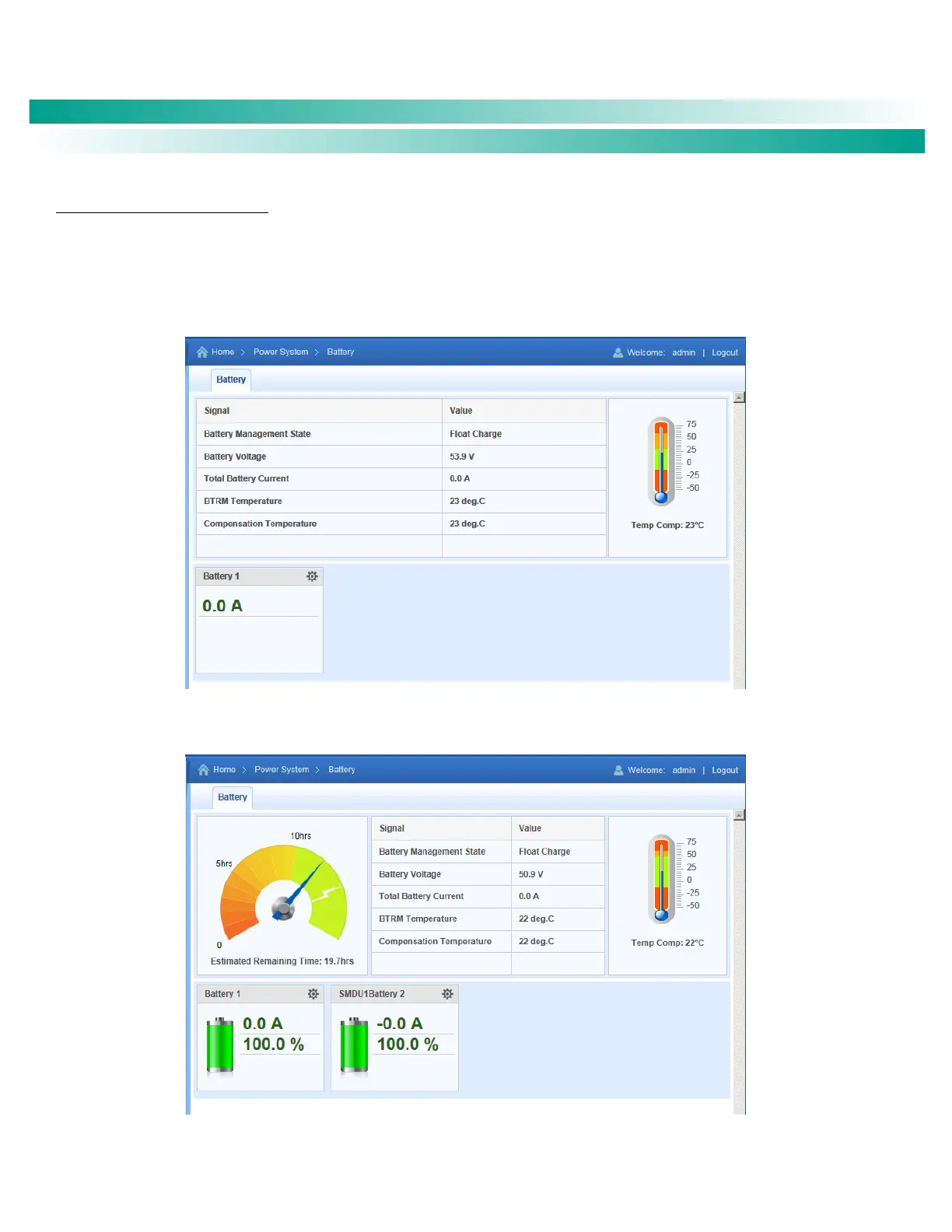

Figure 42. Battery Device Group Status Page
Figure 43. Battery Device Group Status Page
